Goodyear 1R11-171 Air Bag BELLOWS NO.566-22-3-057 FIRESTONE W013589421 For AMERICAN CARRIER 8003003

1R11-171 this kind of air spring is produced by Goodyear.We imported this kind of air spring from Amercia.

1R11-171 Goodyear Air Spring-Rolling Air Bag 1R11-171 describes Goodyear's sleeve type air spring will use a flexible member without internal molded beads. The bladder model is 566-22-3-057, and the flexible piece is connected to the end of the holder by pinching the material between the end and the external crimping ring, and then adjusting it to an appropriate diameter.

OEM Cross Number:

Manufacturer GOODYEAR
Brand GOODYEAR

GOODYEAR 1R11-171;

GOODYEAR Part NO.1R11 171;

GOODYEAR Part NO.1R11171.

GOODYEAR Bellows NO. 566-22-3-057;

GOODYEAR 566 22 3 057;

GOODYEAR 566223057;

GOODYEAR PISTON 566-20-7-150 STEEL

OEM Suspension Supplier Number:

Goodyear Number: 1R11-171

Bellows type: rolling leaf

Ultraman bellows Number: 1DK20D

Firestone bellows Number: Not applicable

Goodyear Bellows Number: 566-22-3-057

Contitech bellows Number: 9 9-12

Triangle bellows Number: 6368

Base plate/neutron type: steel

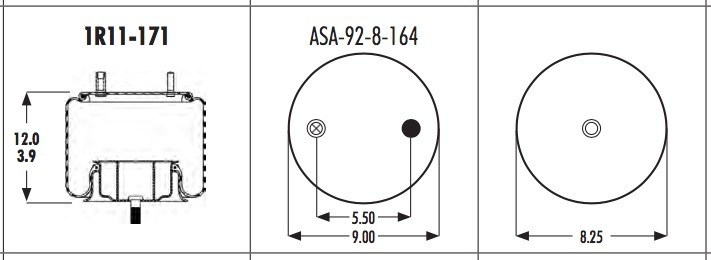

Number of top plate holes/studs: 2

Top plate diameter: 9

Top plate C to C diameter: 5.5

Base plate hole bolt Qyt: 1

Diameter of bottom plate: 8.25

Diameter of base plate C to C: N/A

Base plate part number: 566-20-7-150

Bottom plate alignment: parallel

Bumper: No

Bracket: Not applicable

Minimum height: 3.9

Maximum height: 12
