| 起源の場所: | 中国広州 |
| ブランド名: | GUOMAT |
| 証明: | ISO/TS16949, ISO9001 |
| モデル番号: | GF40/60-1 |
| 最小注文数量: | 5 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 強力なカートンボックスまたは顧客の要件として |
| 受渡し時間: | 5-8営業日 |
| 支払条件: | L/C、D/A、D/P、Western Union |
| 供給の能力: | 1000pcs/週 |
| アイテム番号: | GF40/60-1 | 材料: | ゴムと鋼 |
|---|---|---|---|
| スタイル: | 単一の複雑な空気ばね | 一部: | 空気スプリング/空気リフト/空気懸垂 |
| サンプル: | 利用可能 カスタマイズされた要求 | OEM番号: | コンチテック FS22-3 |
| タイプ: | ガスで満たされています | 色: | 黒 |
| ハイライト: | Contitech truck air spring,FD 120-17 dust removal equipment,industrial suspension air spring |
||

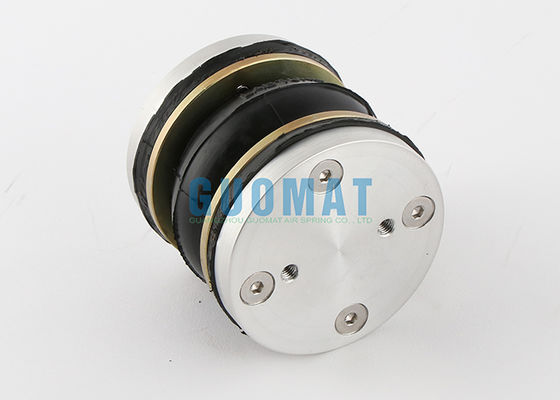

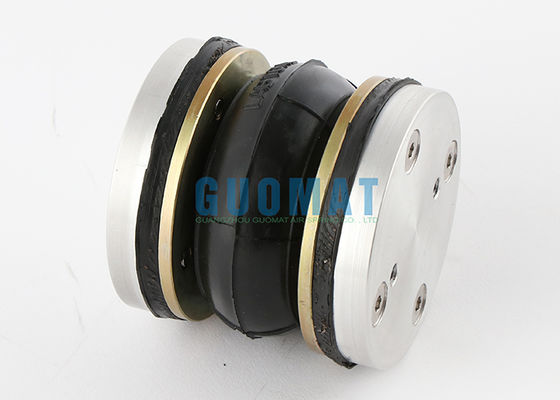

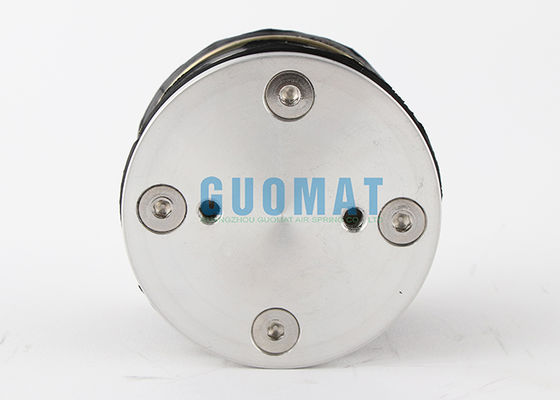

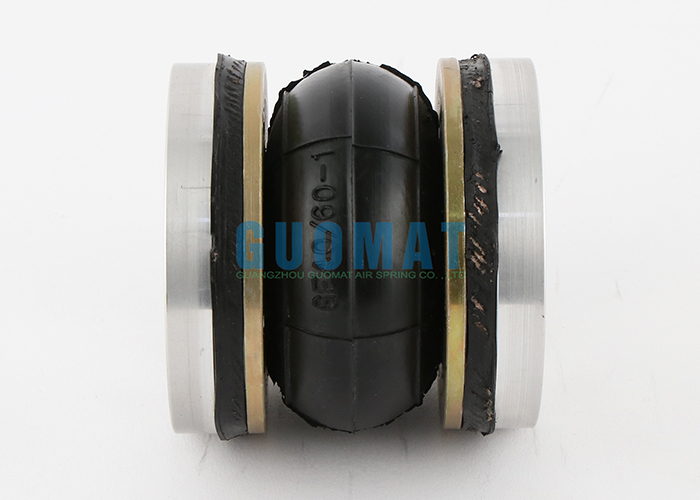

GF40/60-1 GUOMAT Single Convoluted Air Spring FS 22-3 DI CR Contitech Air Actuator
Product Specification
| Bottom Cover Plate | |
| Bottom Plate Center To Center Diameter | 60mm |
| Bottom Plate Diameter | 80mm |
| Bottom Plate Hole Quantity | 2 |
| Bottom Plate Type | Steel |
| Top Cover Plate | |
| Top Plate Center To Center Diameter | 60mm |
| Top Plate Diameter | 80mm |
| Top Plate Hole Quantity | 3 |
| Top Plate Type | Steel |
| Rubber Bellow | |
| Bellow Maximum Diameter | 80mm |
| Height | 60mm |
| Spring Type | Single Convoluted |
| Air Hole/Air Inlet/Gas Hole/Gas Fitting | |
| Air Inlet | G1/4 |
| Nut/Blind Nuts Type | M6 |
OE Manufacturer Number
Contitech FS22-3
Contitech FS 22-3
Contitech FS22-3 DI
Contitech FS 22-3 DI
Contitech FS22-3 DI CR
Contitech FS 22-3 DI CR
Summary of the Application Advantages of GF40/60-1 Air Springs
Superior Vibration Isolation: Low natural frequency effectively isolates low- and mid-frequency vibrations, a feature unmatched by steel springs.
Height Adjustability: The height and level of the equipment can be easily adjusted by inflating and deflating the air spring to adapt to different working conditions and loads.
Variable Stiffness Characteristics: Its stiffness changes with the load, allowing the system's natural frequency to remain relatively stable under varying loads, resulting in better vibration isolation.
High Load Capacity: A single air spring can withstand loads ranging from hundreds of kilograms to tens of tons.
Long Lifespan and Simple Maintenance: Compared to traditional metal springs and rubber vibration dampers, it has a longer lifespan and lower noise when used correctly.
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
