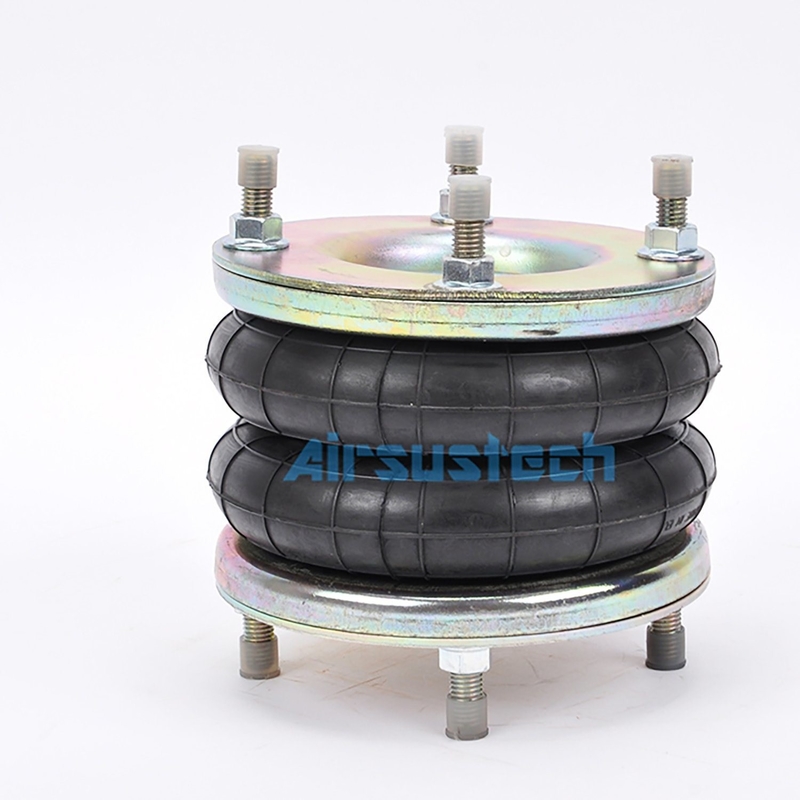

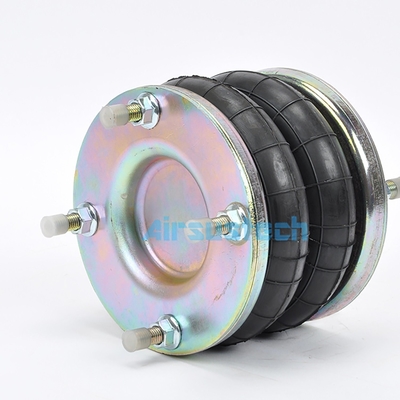

Dunlop SP1482 Double Convoluted Air Cylinder FD 76-14 DI CR Contitech Rubber Air Spring

商品の詳細:

起源の場所:	広州中国
ブランド名:	GUOMAT
証明:	ISO/TS16949, ISO9001
モデル番号:	2B6X2T

お支払配送条件:

最小注文数量:	5pcs
価格:	USD99.9-399.9/PC
パッケージの詳細:	強力なカートンボックスまたは顧客の要件として
受渡し時間:	3〜7営業日
支払条件:	L/C、T/T、Western Unionまたはその他
供給の能力:	1000pcs/週

詳細製品概要

モデル名:	フランジエアスプリング	品質:	100％テスト
fuction:	ショックを減らします	トランスポートパッケージ:	強いカートン
アフターセールスサービス:	12か月	タイプ:	ガスで満たされています
contitech:	Fd 76-14	色:	黒

Dunlop SP1482 Double Convoluted Air Cylinder FD 76-14 DI CR Contitech Rubber Air Spring

OEM NO.

ContiTech: FD 76-14 1/2 M10

ContiTech: FD 76-14 DS G1/2

ContiTech: FD 76-14 DS G1/2 CR

ContiTech: FD 76-14 DS CR G1/2

ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR

ContiTech Bellow: FD 76-14 / FD76-14 / FD7614

Norgren: M/31062 / M 31062 / M31062

Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2

Dunlop FR: SP1482

Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112

Double Convoluted Air Spring 2B180-115 D185

Replaces These Air Springs (Air Bellows)

Specifications and Detailed Technical Parameters: 6×2

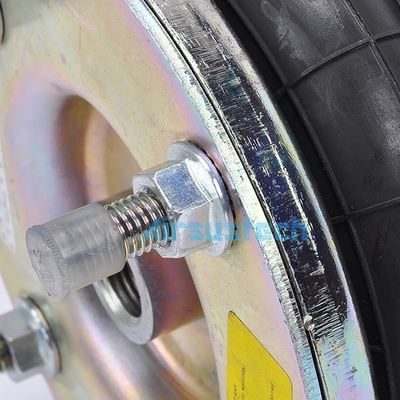

Nut/blind nut

Top plate screw (nut) teeth: 4×M10
Screw (nut) teeth of the bottom cover plate: 4×M10

The screw center distance:127mm

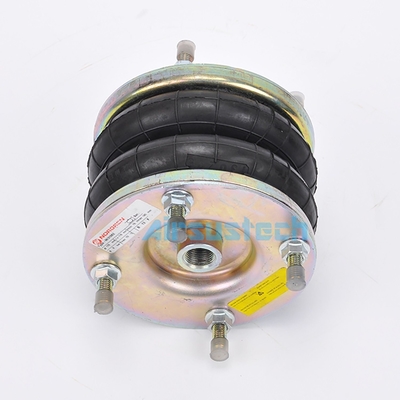

Air hole/air inlet/air fittings

Air hole/air inlet: G1/2

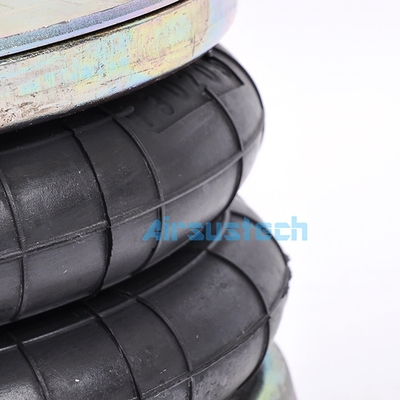

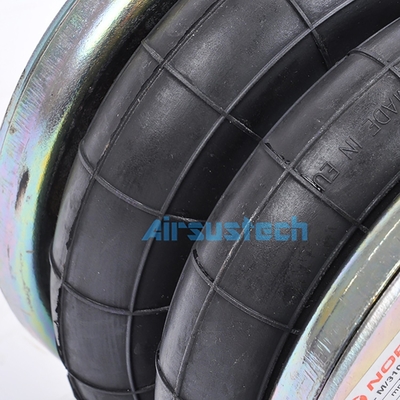

Rubber Bellows

Top plate diameter (width): 153.5 mm

Diameter (width) of the bottom cover plate: 153.5 mm

Material top and bottom plate: aluminum

Bell rubber bellows
Maximum diameter at 7 bar: 175MM

Rubber bellows stroke: 80mm-195mm

Required installation space: 190mm

Bumper block/bumper block

Without bumper block

Belt loop/Belt loop

With belt loop: One belt loop

Min. pressure: 0 bar

Return force to min.height: ≤180N

Overall weight with clamped plates: 2.6kg

Air springs exhibit nonlinear characteristics, with their stiffness varying with load. This allows their natural frequency to remain nearly constant under any load, resulting in a virtually unchanging spring mechanism. They also offer excellent high-frequency vibration absorption and sound insulation. They can withstand both axial and radial loads, and their load-bearing capacity can be adjusted by adjusting the internal pressure.

Therefore, they can adapt to a wide range of load requirements.

Within their effective travel, air springs can adjust their stiffness, height, cavity volume, and load capacity by increasing or decreasing the inflation pressure. Simultaneously, their stiffness, height, cavity volume, and load capacity undergo smooth, cyclical, flexible changes as the load increases or decreases, enabling flexible load transfer, effective travel adjustment, and efficient control of vibration amplitude and load. Additional air chambers can be added, utilizing a solenoid valve and air pump for automatic adjustment.

Due to these characteristics, air springs are increasingly used in equipment and instruments requiring travel control, vibration damping, or seismic isolation, such as trains, automobiles, papermaking machines, lifting platforms, presses, vibrating conveyors, vibrating screens, air hammers, vibration testing machines, and foundry machinery.

Other Kind of Flange Air Spring

Part No.	Gas Hole	Screw
FS 76-7 DS	G1/2	M10
FS 138-8 DS	G1/2	M10
FS 210-10 DS	G1/2	M10
FS 412-10 DS	G1/2	M10
FS 614-13 DS	G1/2	M10
FS 816-15 DS	G1/2	M10
FD 76-14 DS	G1/2	M10
FD 138-18 DS	G1/2	M10
FD 209-21 DS	G1/2	M10
FD 210-22 DS	G1/2	M10
FD 412-18 DS	G1/2	M10
FD 614-26 DS	G1/2	M10
FT 76-20 DS	G1/2	M10
FT 138-26 DS	G1/2	M10
FT 210-32 DS	G1/2	M10
FT 412-32 DS	G1/2	M10
FT 614-36 DS	G1/2	M10
