| Place of Origin: | Guangdong, China |
| ブランド名: | GUOMAT |
| 証明: | ISO/TS16949, ISO9001 |
| Model Number: | 3B7996 |
| Minimum Order Quantity: | 5 |
|---|---|
| 価格: | $69.9-$79.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 5-8 Working Days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000PCS/Week |
| Material: | Rubber And Steel | Quality: | 100 % Tested |
|---|---|---|---|
| Fuction: | Reduce Shock | Warranty: | 12 Months |
| Stroke: | 117mm-460mm | Goodyear: | 3B12-335 |
| Contitech: | FT 330-29 520 | Other Name: | Industrial Air Spring |

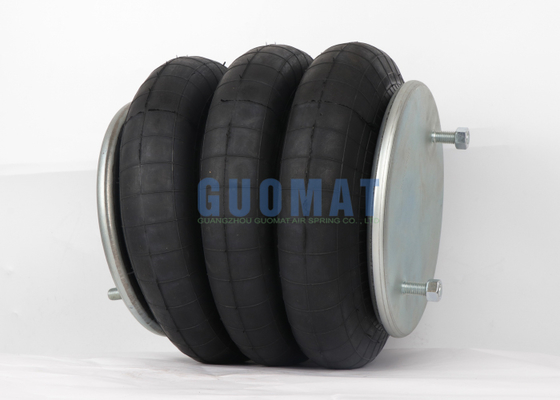

W01-358-7996 Firestone Rubber Air Spring FT 330-29 520 Contitech Industrial Air Bellows Bag Bags
Product Introduction
Item: Industrial Air Spring
Technical Parameters
| Nut/blind nut |
| Top plate screw (nut) teeth: 2X3/8-16UNC Bottom cover plate screw (nut) teeth: 2X3/8-16UNC The screw center distance of the cover plate: 157.5mm |
| Air hole/air inlet/air fittings |
| G3/8 The distance betweem the air hole/air inlet/air fittings and the screw: 73mm |
| Rubber Bellows |
| Rubber bellows stroke: 297mm Rubber bellows diameter: 295mm |
| Plate diameter |
| Top plate diameter (width): 231 mm Bottom cover plate diameter: 231 mm |
| Bumper block/bumper block |
| Without |
| Belt loop/Belt loop/Girdle hoop |
| With two pieces of belt loop/girdle hoop |
The Related Picture
