W01-358-9415 Firestone Truck Air Spring 1R11-018 Goodyear Air Suspension Pneumatique

W01-358-9415 Firestone Truck Air Spring 1R11-018 Goodyear Air Suspension Pneumatique

  • W01-358-9415 Firestone Truck Air Spring 1R11-018 Goodyear Air Suspension Pneumatique
  • W01-358-9415 Firestone Truck Air Spring 1R11-018 Goodyear Air Suspension Pneumatique
  • W01-358-9415 Firestone Truck Air Spring 1R11-018 Goodyear Air Suspension Pneumatique
  • W01-358-9415 Firestone Truck Air Spring 1R11-018 Goodyear Air Suspension Pneumatique
W01-358-9415 Firestone Truck Air Spring 1R11-018 Goodyear Air Suspension Pneumatique
商品の詳細:
Place of Origin: GuangDong, China
ブランド名: GUOMAT
証明: ISO/TS16949:2009
Model Number: 1T9415
お支払配送条件:
Minimum Order Quantity: 6pcs
価格: $79.9-99.9/pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
連絡先
詳細製品概要
Model: Rubber Air Spring Warranty: 1 Year
Material: Rubber and Steel Application: Truck Air Suspension
Color: Black Goodyear: 1R11-018
Firestone: W01 358 9415 Other Name: Truck Air Spring Assembly
ハイライト:

Firestone truck air spring 1R11-018

,

Goodyear air suspension pneumatique

,

truck air springs with warranty

W01-358-9415 Firestone Truck Air Spring 1R11-018 Goodyear Air Suspension Pneumatique
Product Specifications
Attribute Value
Model Rubber Air Spring
Warranty 1 Year
Material Rubber and Steel
Application Truck Air Suspension
Color Black
Goodyear 1R11-018
Firestone W01 358 9415
Other Name Truck Air Spring Assembly
Product Details

GUOMAT No.: 1T9415

Warranty: 1 Year

Material: Rubber+Steel

Packing: Carton packing

Application: Truck / Trailer Air Suspension

Color: Black

Installation: Direct Installation

Cross Reference Numbers

CONTI: 99-14A322

DAYTON: 352-9073, 352-9415

FIRESTONE: 9073, 9415, W013589415

HENDRICKSON: B-7193

INT'L/NAVISTAR: 554761CI

KENWORTH: K-102-A, K-303-5

LOAD GUARD: 1003589073C, 1013580708C

TAURUS: AS103-9073

TRIANLE: 8322

GOODYEAR: 1R11-018

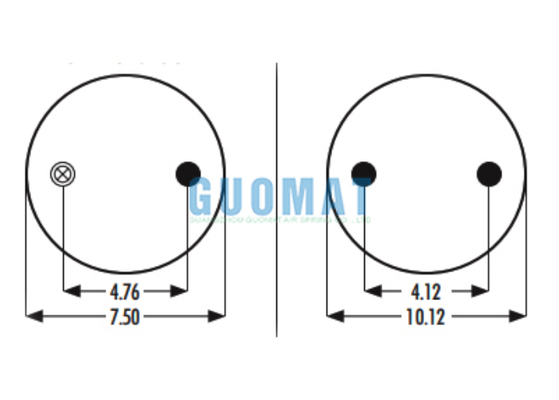

Technical Specifications

Bottom Plate/Piston Type: Steel

Top Plate Hole/Stud Qty: 2

Top Plate Dia: 7.5

Top Plate C to C Diameter: 4.76

Bottom Plate Hole Stud Qty: 2

Bottom Plate Dia: 10.12

Bottom Plate C to C Diameter: 4.12

Bottom Plate Part #: 566-20-7-079

Bottom Plate Alignment: Parallel

Bumper: No

Bracket: N/A

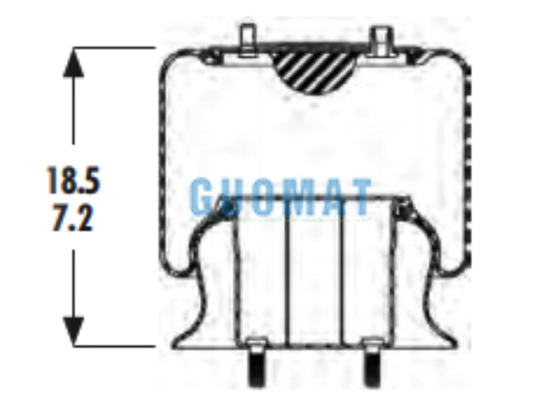

Min Height: 7.2

Max Height: 18.5

Benefits of Air Springs for Trucks
  • Improved ride smoothness and comfort: Reduces vibration transmission to vehicle frame and cargo, ideal for long-distance transport or delicate cargo.
  • Adaptive load adjustment: Automatically adjusts height based on load weight to maintain vehicle levelness and protect cargo.
  • Protects vehicle and road: Evenly distributes load, reducing mechanical stress and extending suspension life while minimizing road wear.
  • Improved safety and handling: Enhances stability during cornering and braking, maintains tire contact on rough roads.
  • Energy saving and efficiency: Reduces fuel consumption by optimizing power transmission and allows height adjustment for easier loading.
  • Compliance with regulations: Meets environmental standards for vibration damping and noise reduction in commercial vehicles.
  • Special applications: Essential for precision instrument transportation and drop-and-hook transport scenarios.

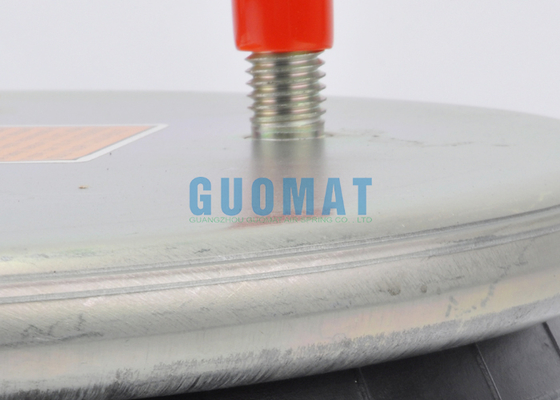

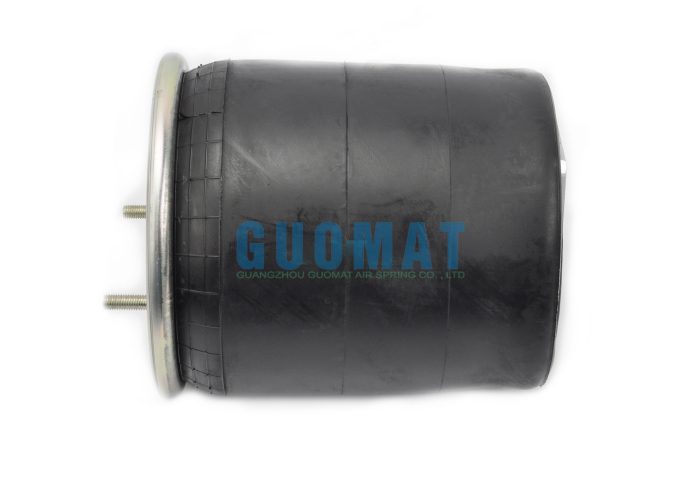

Product Image
W01-358-9415 Firestone Truck Air Spring 1R11-018 Goodyear Air Suspension Pneumatique 0
Note: Initial investment and maintenance costs are higher than leaf springs, but long-term benefits offset the cost. Regular maintenance of air line seals and desiccant is required.
