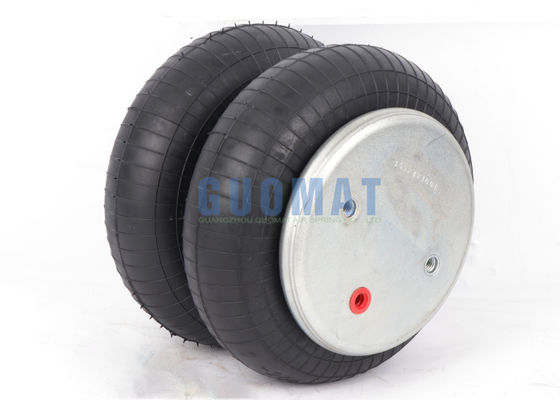

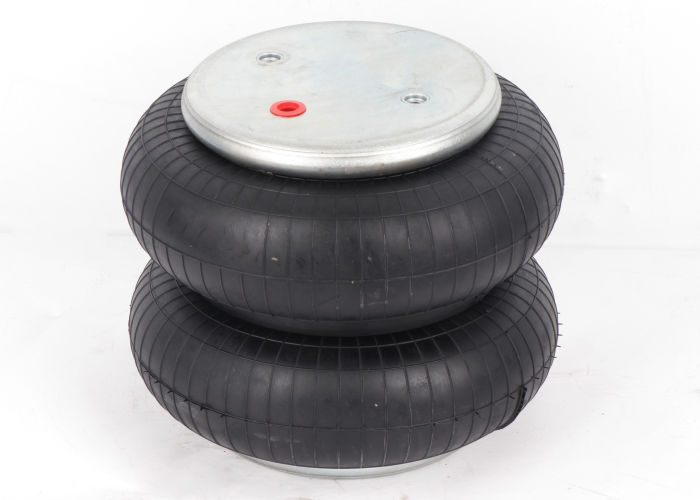

W01-M58-7894 Firestone Double Convoluted Air Bellows 2B9-287 Goodyear Air Spring Replacement

商品の詳細:

起源の場所:	広州、中国
ブランド名:	GUOMAT
証明:	ISO/Ts16949:2009
モデル番号:	2B7894

お支払配送条件:

最小注文数量:	6pcs
価格:	$59.9-69.9/pc
パッケージの詳細:	カートン製の包装または顧客の要求に応じて包装
受渡し時間:	5-8営業日
支払条件:	L/C、T/T、Western Union
供給の能力:	1週あたりの10,000

詳細製品概要

春の素材:	天然ゴム	品質:	100％テスト
fuction:	ショックを減らします	保証:	12か月
タイプ:	複雑なエアスプリング	最大高さ:	260mm
最小高さ:	75mm	エアフィッティング:	G1/4
ハイライト:	Firestone double convoluted air bellows , Goodyear air spring replacement , industrial air spring with warranty

W01-M58-7894 Firestone Double Convoluted Air Bellows 2B9-287 Goodyear Air Spring Replacement

Product Attributes

Attribute	Value
Spring Material	Natural Rubber
Quality	100 % Tested
Function	Reduce Shock
Warranty	12 Months
Type	Convoluted Air Spring
Max Height	260mm
Min Height	75mm
Air Fitting	G1/4

Product Description

Item Name: Double Convoluted Air Spring

Brand: GUOMAT

Model No.: 2B67894

Bellows No.: 2B 200

Manufacturer Warranty: 1 Year

Material: Rubber and Steel

Condition: Brand New

Packing: Carton/Pallet

Cross Reference Numbers

FIRESTONE NUMBER: 20F, 7894, W01M587894 / WO1M587894, W01-M58-7894 / WO1-M58-7894, W01 M58 7894 / WO1 M58 7894

CONTITECH NUMBER: FD200-19 P04, FD 200-19 P04, FD200-19 P04 1/4, FD 200-19 P04 1/4, FD200-19 P04 1/4 M10, FD 200-19 P04 1/4 M10, FD 200-19 P04 / 895N / 72044

GOODYEAR NUMBER: 2B9-287, 2B 9-287, 2B9 287, 2B 9287, 578-92-3-211, 578 92 3 211, 578923211

DUNLOP NUMBER: S09208

PHOENIX NUMBER: SP 2B12R5, SP2B12R5

VIBRACOUSTIC NUMBER: VSP2B12R-5, V SP 2B 12 R-5

SAF: 4.229.1004.00

Pirelli: T2086660

Taurus: Kf216

Airkraft: 113549

Grannung: 15599

Kogel: 6501706, 6502824

Scania: 1319761, 1723523, 1387289, 1319761, 1387283

SAF: 1600 4.229.1004.00

Product Size Data Parameters

Maximum outer diameter Natural	251mm / 9.9''
Outer diameter	224mm / 8.8''
Maximum height	260mm / 10.2''
Minimum height	75mm / 3.0''
Cover plate diameter	160mm / 6.3''
Air Fitting	G1/4
Threaded Hole	M10X1.5
Center distance between threaded holes	89mm / 3.5''

20FY Firestone Air Bellows

Style No.	Part No.	Weight(KG)	Cross Refer No.
20FY	W01-M58-7756	3.18	MERCEDES A 942 327 06 01 HENDRICKSON SH 505613
20FY	W01-M58-7887	3.21	SCHMITZ 016 010 ROR 2122 2663 ROR 2122 1395
20FY	W01-M58-7888	3.42	SCHMITZ 016 793 WEWELER US 06910C WEWELER US 06910F
20FY	W01-M58-7894	3.16	SAF HOLLAND 4.229.1004.00
