Contitech Air Spring Bellows Cylinder FS70-7 Industrial Vibrating Screen Shock Absorption

商品の詳細:

起源の場所:	中国広州
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	1B7070

お支払配送条件:

最小注文数量:	6pcs
価格:	$49.9-59.9/pc
パッケージの詳細:	強力なカートンボックスまたは顧客が必要とするように
受渡し時間:	2-8勤務日
支払条件:	L/C、T/T、Western Union
供給の能力:	1000pcs/週

詳細製品概要

タイプ:	単一の複雑なタイプ	春の素材:	スチール+ゴム
保証:	1年	衝撃吸収材のタイプ::	ガスで満たされています
品質:	100％テスト	contitech:	FS 70-7
フェニックス:	SP 1B 05	位置:	産業機器プラットフォームショック吸収
ハイライト:	Contitech air spring bellows cylinder , industrial vibrating screen shock absorption , FS70-7 air spring with warranty

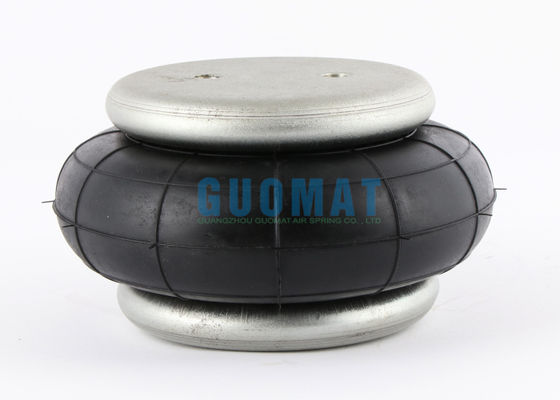

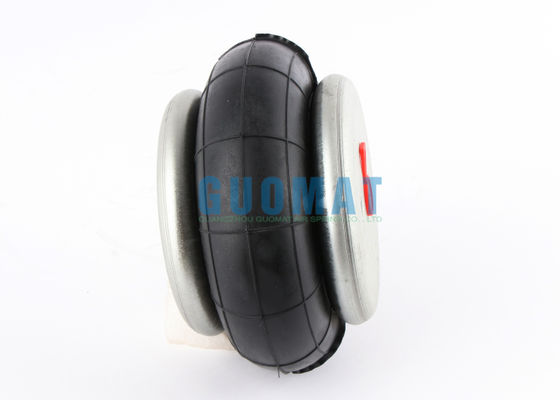

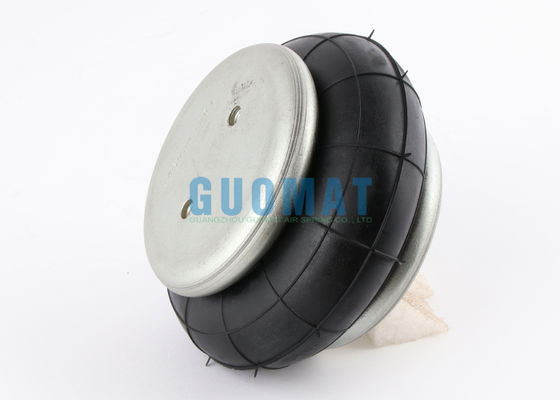

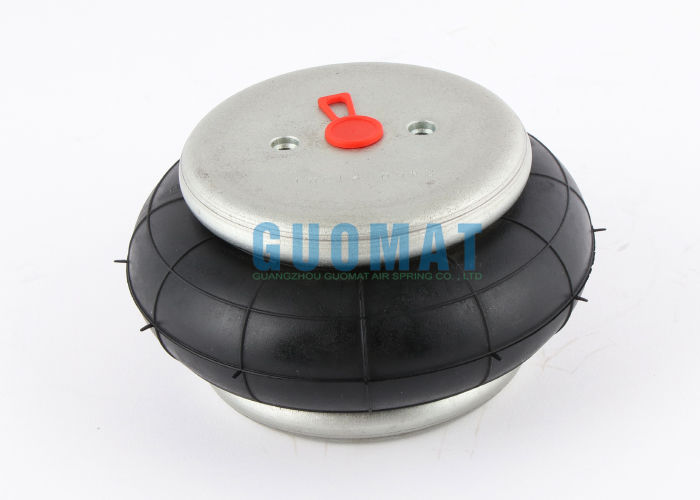

Contitech Air Spring Bellows Cylinder FS70-7 Industrial Vibrating Screen Shock Absorption

Product Attributes

Attribute	Value
Type	Single Convoluted Type
Spring Material	Steel+Rubber
Warranty	1 Year
Shock Absorber Type	Gas-Filled
Quality	100% Tested
Contitech	FS 70-7
Phoenix	SP 1B 05
Position	Industrial Equipment Platform Shock Absorption

Product Description

Type Name	Industrial Air Spring Bellow
Type Number	1B 707
Warranty	12 Months
Color	Black
Place of Origin	Guangzhou, China
Certification	ISO/TS16949:2009
Material	Rubber+Steel
Packing	Neutral Packing
MOQ	1PCS
Quality	High-Quality
Position	Industrial Machine

OE Manufacturer Number / Cross Reference Number

ContiTech Part Number: FS 70-7
ContiTech Part Number: FS 70-7 2681015000
ContiTech Part Number: FS 70-7 CI
ContiTech Part Number: FS 70-7 CI 2681015000
ContiTech Part Number: FS 70-7 1/4 M8
ContiTech Part Number: FS 70-7 G1/4 M8
ContiTch Part Number: FS 70-7 G1/4
ContiTech Part Number: FS 70-7 CI G1/4 M8
ContiTech Part Number: FS 70-7 CI/FS70-7C1/FS707C1
ContiTech Bellow: FS 70-7 / FS70-7 / FS707
Firestone Air Spring No.: W01-M58-6155 / W01 M58 6155 / W01M586155
Firestone Air Spring No.: WO1-M58-6155 / WO1 M58 6155 / WO1M586155
Firestone Style: 131
Enidine Part Number: YM-FS 70-7-0160 / YMFS 70-7-0160 / YMFS70-7-0160
Enidine Part Number: YM-FS 70-7 CI G1/4 M8
Enidine Part Number: Yl-FS 70-7-731 / YIFS 70-7-731 / YIFS70-7-731
Enidine Part Number: Yl-FS 70-7 CI1/4NPT 3/8-16UNC
Goodyear Part Number: 1B6-833 / 1B6 833 / 1B6833
Goodyear Flex No.: 579-913-510 / 579 913 510 / 579913510
Enidine Part Number: Yl-1B6-833 / Y11B6 833 / YI1B6833
Phoenix Part Number: SP1 B 05 / SP1B05
Bosch: 822419002
Festo: EB-165-65 / EB 165 65 / EB16565
Weforma: WBE 200-E1 / WBE200-E1 / WBE200E1
Vigor: 1B 5002 / 1B5002
Vigor Bellow: 1B70-7 / 1B707 / 1B707
VKNTECH: 1B 7070 / 1B7070
VKNTECH Bellow: 1B70-7 / 1B707 / 1B707
EAA: 1E70-7 / 1E707 / 1E707
EAA Bellow: 1E70-7/1E707/1E707
HONGLI: JBF100/96-1 / JBF100961 / JBF100961
CHENGUANG: 150086-1 / 150086J1 / 15008611

Technical Data: GUOMAT 1B7070

Category	Parameter Name	Value/Specification	Notes/Explanation
Main Dimensions	Natural Outer Diameter	Φ150	Standard outer diameter
Main Dimensions	Maximum Outer Diameter	Φ165	Maximum allowed outer diameter
Main Dimensions	Maximum Extended Height	115	Height of the component when extended
Main Dimensions	Minimum Compressed Height	50	Height of the component when compressed
Cover Plate	Cover Plate Diameter	Φ44.5	Diameter of the cover plate
Mounting Holes	Number of Threaded Holes	2
Mounting Holes	Threaded Hole Specification	M8×1.25	Fine pitch metric thread
Mounting Holes	Center Distance of Holes	105	Distance between the centers of the two holes
Functional Port	Air Port Specification	G1/4	British standard pipe thread, commonly used for pneumatic connections

Applications

Various applications for the vehicle industry such as steering damping, engine vibration damping, belt tensioning damping for engines and on driver seats in commercial vehicles, etc.
On household products such as washing machines
Special shock absorbers for bicycles
On commercial lawn movers
In the medical equipment industry ie. on wheelchairs
