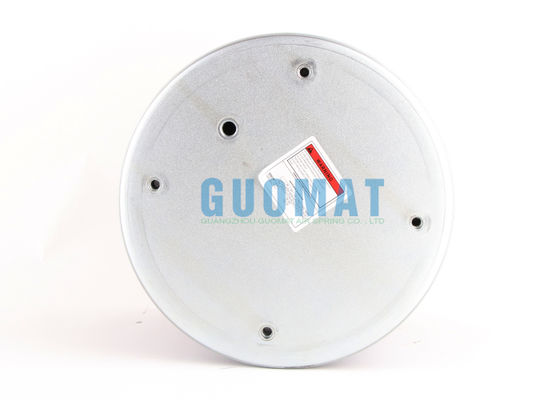

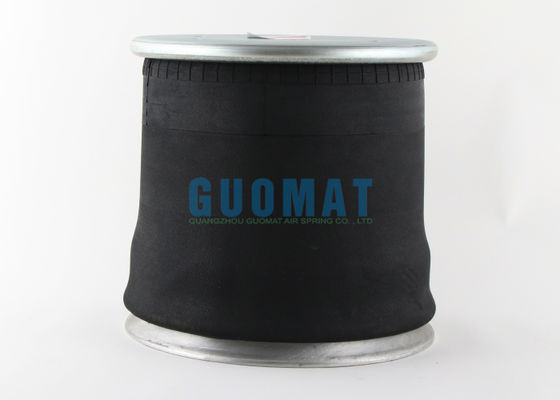

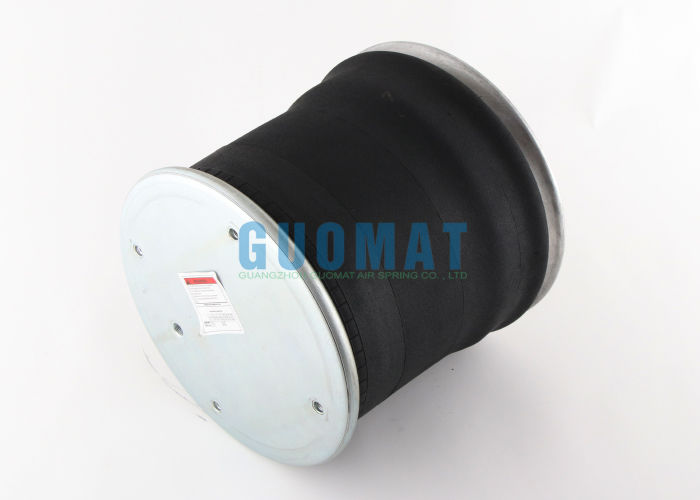

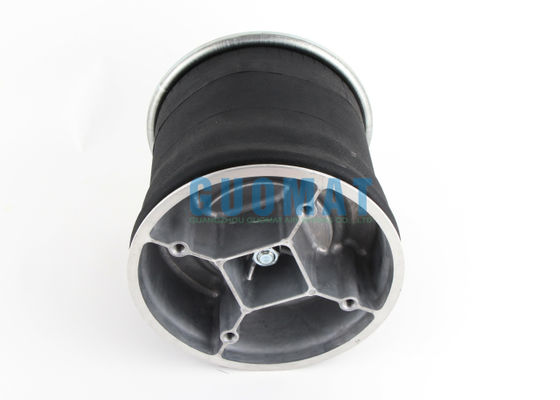

Truck Suspension Parts W01-358-9206 Firestone Lobe Type Air Spring 1T19L-5 Air Bellow

商品の詳細:

起源の場所:	中国広州
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	1T 9206

お支払配送条件:

最小注文数量:	6pcs
価格:	$79.9-89.9/pc
パッケージの詳細:	強力なカートンボックスまたは顧客が必要とするように
受渡し時間:	2-8勤務日
支払条件:	L/C、T/T、Western Union
供給の能力:	1000pcs/週

詳細製品概要

材料:	ゴムと鋼	メーカーの保証:	12か月
サンプル:	利用可能	手術:	ガスで満たされています
パート番号:	Firestone W01-358-9206	エアスプリングタイプ:	転がり丸い突出部のタイプ
バンパー:	それなし	ピストン高さ:	3.76 ''
ハイライト:	Firestone lobe type air spring , Truck air suspension bellow , 1T19L-5 air spring replacement

Truck Suspension Parts W01-358-9206 Firestone Lobe Type Air Spring 1T19L-5 Air Bellow

Essential Details

Product Name: Air Spring, Air Suspension Bellow
Brand: GUOMAT
GUOMAT No.: 1T9206
Application: Automotive Suspension System
Position: Rear/Front
Type: Lobe Type Air Spring

Original Equipment Manufacturers Numbers

FIRESTONE: 1T19L-5
FIRESTONE: W01-358-9206
FIRESTONE: W01 358 9206
FIRESTONE: W013589206
FIRESTONE: WO1-358-9206
FIRESTONE: WO1 358 9206
FIRESTONE: WO13589206

Product Data Size Information

Top Plate Diameter: 11.31''
Piston Diameter: 11.81''
Bellows Diameter: 10.62''
Piston Height: 3.76''
Piston Material: Aluminum
Max Extended Height: 17.00''
Minimum Compressed Height: 5.30''
Top Plate Mounting Type: Threaded Hole
Top Plate Threaded Hole Quantity: 4
Distance Between Top Plate Threaded Holes: 6.25''
Piston Mounting Type: Threaded Hole
Piston Threaded Hole Quantity: 4
Distance Between Piston Threaded Holes: 7.88''

GUOMAT also Supplies Air Spring Assemblies for Other Truck Models

GUOMAT No.	Contitech	Firestone	Goodyear	Type
1T6345	810MB4st	W01-M58-6345	1R14-059	Piston Steel
1T8773	810MB4st	W01-M58-8773		Piston Steel
1T5918	811MB		1R14-718	Piston Steel
1T6334	811M16K1	W01-M58-6334	1R14-719	Piston Steel
1T6364	813MB4st	W01-M58-6364	1R14-061	Piston Steel
1T8701	836MBK6	W01-M58-8701		Piston Steel
1T8722	836MK1	W01-M58-8722	1R12-712	Piston Steel
1T8705	836MBK4	W01-M58-8705		Piston Steel
1T8703	836MK2K8	W01-M58-8703		Piston Steel
1T8721	836M2K1	W01-M58-8721	1R12-711	Piston Steel
1T8966	881MB	W01-M58-8966	1R14-702	Piston Steel
1T8967	881MB		1R14-748	Piston Steel
1T8681	887MK4	W01-M58-8681		Piston Steel
1T8682	887MK3	W01-M58-8682		Piston Steel
1T7385	912NP02	W01-M58-7385	1R14-758	Piston Steel
1T8609	940MB	W01-M58-8609	1R11-763	Piston Steel
1T8619	941MB	W01-M58-8619	1R11-701	Piston Steel
1T6367	4022NP03	W01-M58-6367	1R11-708	Piston Steel
1T8612	4022NP05	W01-M58-8612		Piston Steel
1T6348	4023NP03	W01-M58-6348	1R14-729	Piston Steel
1T7370	4028NP05	W01-M58-7370	1R14-721	Piston Steel
1T9089	4156NP09	W01-M58-9089	1R12-706	Piston Steel
1T6297	4157NP04	W01-M58-6297	1R11-111	Piston Steel
1T7074	4157NP05	W01-M58-7074	1R11-106	Piston Steel
