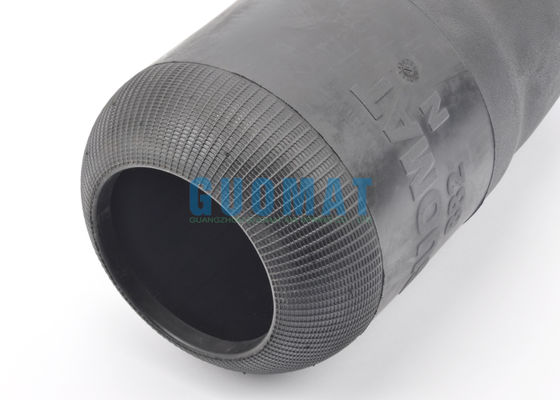

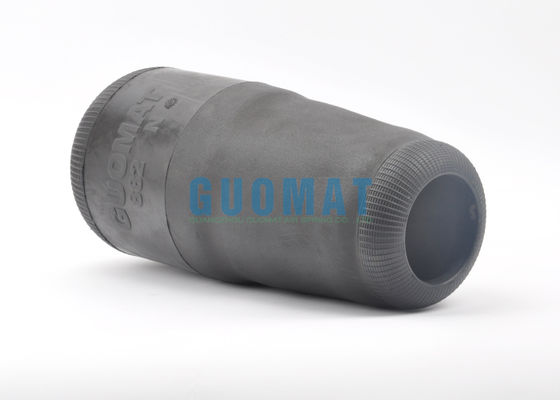

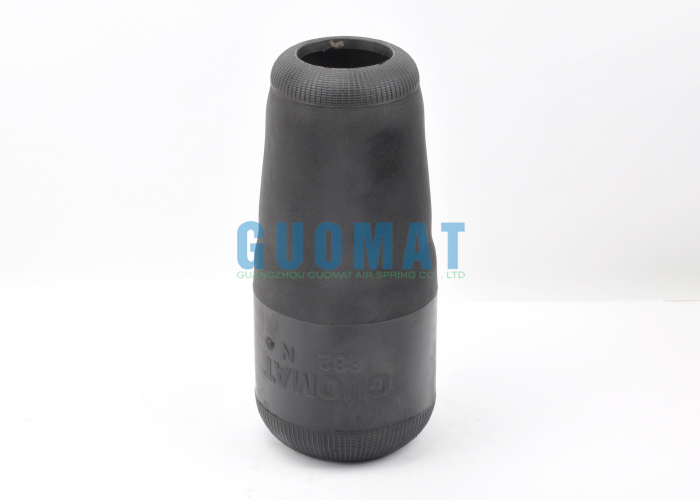

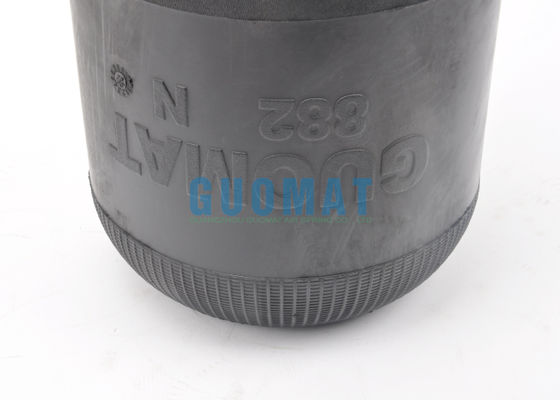

465 Height Contitech Bus Air Spring 882N1 Firestone W01-095-0435 Air Suspension For MAN

商品の詳細:

起源の場所:	中国広州
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	882N1

お支払配送条件:

最小注文数量:	1pcs
価格:	$19-29/pc
パッケージの詳細:	強力なカートンボックスまたは顧客が必要とするように
受渡し時間:	2-8勤務日
支払条件:	T/T、Western Union、L/C
供給の能力:	1000pcs/週

詳細製品概要

エアスプリング:	バスエアーバッグ	スプリングタイプ:	ラバーエアスプリング
主な素材:	天然ゴム	保証:	12か月
ファイアストーンスタイル:	1R4R 465 260	グッドイヤー:	9048
応用:	バス空気懸濁液	メルセデスベンツ:	A6583280101
ハイライト:	Contitech bus air spring 465 height , Firestone W01-095-0435 air suspension , MAN bus air spring 882N1

465 Height Contitech Bus Air Spring 882N1 Firestone W01-095-0435 Air Suspension For MAN

Product Description

Natural Diameter : 210mm/8.3in
Nominal Diameter : 130.8mm/5.15in
Natural Height : 465mm/18.3in

OE Mnufacturer/Part No.

FIRESTONE W01-095-0435

FIRESTONE W01 095 0435

FIRESTONE W010950435

FIRESTONE 1R4R465260

FIRESTONE 1R4R 465 260

CONTITECH 882N1

CONTITECH 882 N1

GOODYEAR 9048

PHOENIX 1F16

PHOENIX 1F 16

TAURUS B155

TAURUS B 155

CF Gomma 1SC 250-28

MAN Truck: 81436010065

MAN Truck: 81.43601.0065

MAN Truck: 81436010067

MAN Truck: 81.43601.0067

MAN Truck: 8143010070

MAN Truck: 81.4301.0070

MAN Truck: 81436010092

MAN Truck: 81.43601.0092

MAN Truck: 81436010099

MAN Truck: 81.43601.0099

MAN Truck: 81.43601.0103

MAN Truck: 81436010121

MAN Truck: 81.43601.0121

MAN Truck: 81436010132

MAN Truck: 81.43601.0132

Rubber Air Springs used in Bus Suspensions

A rubber air spring is a sealed airbag made of high-strength rubber cord and high-quality rubber. It is filled with compressed air, leveraging the compressibility of air to achieve its elastic action. It typically includes components such as an upper cover, a piston (lower base), and an air connection.

Basic operating principle: When a vehicle travels over an uneven surface, the impact force causes the piston to move upward, compressing the air within the airbag. This compressed air increases its pressure, absorbing and storing energy (acting as a cushion). When the impact force subsides, the compressed air expands, pushing the piston back down and releasing the energy. This process effectively isolates and attenuates vibration and impact from the road.

Advantage Category	Description	Key Benefits
Ride Comfort	Provides superior vibration isolation and noise reduction compared to mechanical springs. Air is a highly compliant medium that effectively absorbs road shocks and high-frequency vibrations.	• Smoother ride for passengers and driver. • Significant reduction in cabin noise and harshness. • Filters out small road imperfections exceptionally well.
Constant Ride Height	Integrated with height control valves, the system automatically maintains a consistent chassis height regardless of passenger load or cargo weight.	• Maintains proper headlight aiming. • Ensures optimal suspension geometry and handling stability. • Prevents sagging when heavily loaded.
Load Leveling & Adjustability	The spring rate and vehicle height can be electronically controlled (in ECAS-equipped buses). Stiffness increases with load to support weight, but the ride feel remains consistent.	• Kneeling function for easier passenger boarding/alighting. • Manual height adjustment for improved obstacle clearance or curb alignment. • Consistent handling and braking performance under various loads.
Vehicle & Component Protection	Isolates the chassis, body structure, and sensitive components from excessive road shocks and vibrations.	• Reduces stress and fatigue on the vehicle frame and body. • Extends the life of electronic systems, interior fittings, and engine components. • Protects passenger luggage and cargo from damage.
Weight Reduction	The overall air spring system (airbags, brackets, air supply) is often lighter than an equivalent system of heavy leaf springs and associated hardware.	• Contributes to better fuel economy. • Allows for increased payload capacity.
Durability & Maintenance	Modern reinforced rubber compounds are designed for long service life. The system has fewer wearing parts compared to complex multi-leaf spring systems.	• High resistance to corrosion. • Simplified maintenance routines (visual inspections for leaks, damage).
