| 起源の場所: | ドイツ |
| ブランド名: | Contitech |
| 証明: | ISO/TS16949:2009 |
| モデル番号: | FS412-10 |
| 最小注文数量: | 5個 |
|---|---|
| 価格: | USD179.9-199.9/PC |
| パッケージの詳細: | 強力なカートンボックスまたは顧客の要件として |
| 受渡し時間: | 3～7営業日 |
| 支払条件: | L/C、T/T、Western Unionまたはその他 |
| 供給の能力: | 1000個/週 |
| 項目名: | ラバーエアスプリング | 材料: | ゴムと鋼 |
|---|---|---|---|
| OEM: | はい | 保証: | 12ヶ月 |
| 別の名前: | ゴム製の空気吹風機 | contitech: | FS412-10 |
| ゴムナンバー: | 12インチ×1 | ノルグレン: | M/31121 |
| ハイライト: | Contitech rubber air spring,single convoluted airbag assembly,FS 412-10 air spring |
||
| Item Name | Industrial Air Spring |
|---|---|
| Model No. | FS412-10 |
| Brand | CONTITECH |
| Warranty | 12 Months |
| Type | Convoluted Air Spring |
| Service Offered | OEM |
| Suspension System | Air Spring Suspension |
| Applications | For Industrial Machine |
| Material | Imported Natural Rubber |
| Operation | Gas-filled |
| Package | Standard Packing Or Customized |

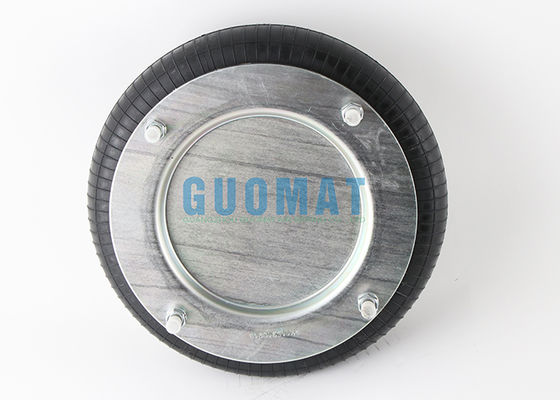

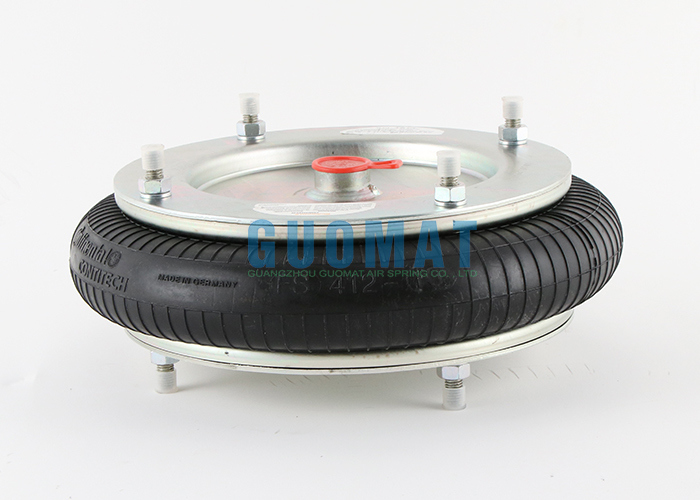

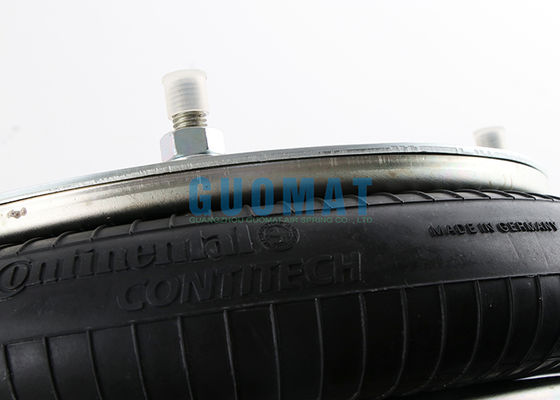

The FS 412-10 Contitech air spring is a single-convoluted type model. The top cover plate has a diameter of 260mm and four M10 bolts with a center-to-center distance of 232mm. The air vent is G1/2 and located in the center of the cover plate. The bottom cover plate also has a diameter of 260mm and four M10 bolts with a center-to-center distance of 232mm. The rubber bellows have a maximum outer diameter of 330mm. Maximum height is 150mm, Minimum height is 50mm.
| Pressure P (bar) | 3 | 4 | 5 | 6 | 7 | 8 | Vol V(I) |
|---|---|---|---|---|---|---|---|
| height H(mm) 120 | 11.2 | 15.1 | 18.9 | 22.9 | 27 | 31.4 | 5.5 |
| 100 | 13.9 | 18.5 | 23.4 | 28.1 | 33.1 | 38.3 | 4.6 |
| 80 | 16.5 | 22.1 | 27.6 | 33.4 | 39.1 | 45 | 3.4 |
| 60 | 18.5 | 24.8 | 31 | 37.2 | 43.6 | 50 | 2.2 |
