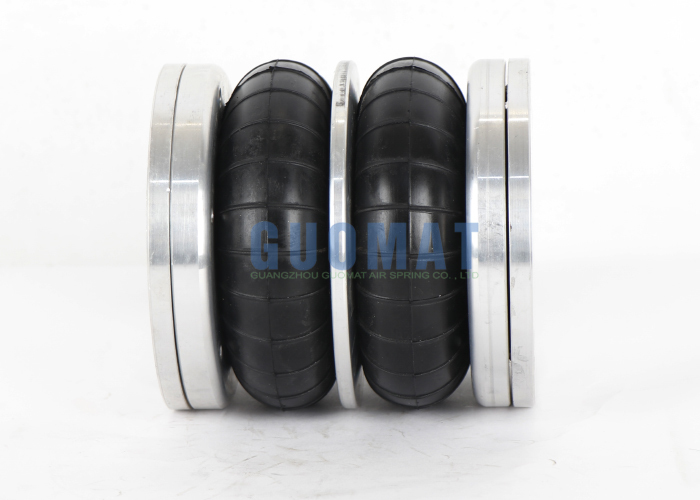

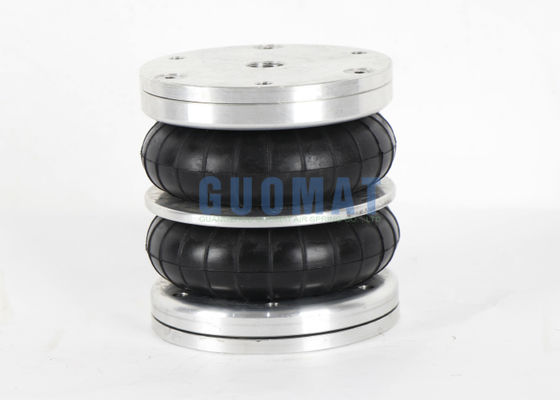

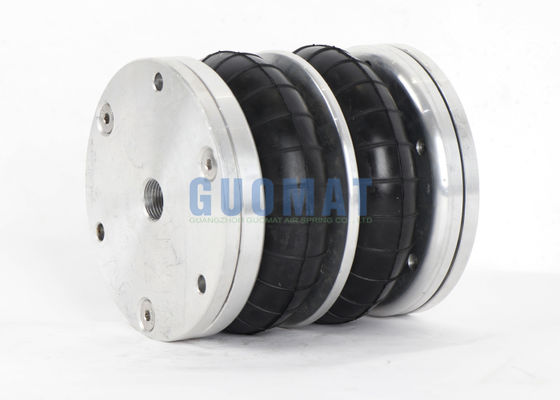

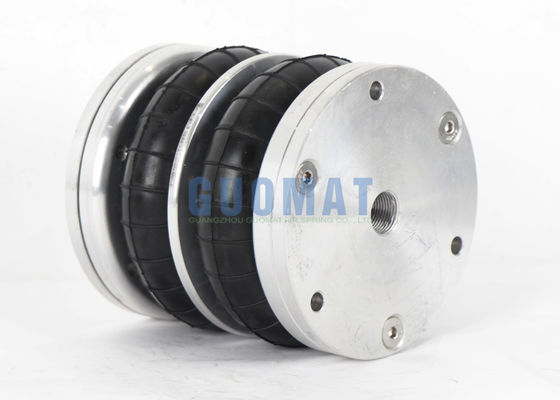

4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring

商品の詳細:

起源の場所:	広州、中国
ブランド名:	GUOMAT
証明:	ISO/Ts16949:2009
モデル番号:	2B4.5X2P

お支払配送条件:

最小注文数量:	6pcs
価格:	$89.9-99.9/pc
パッケージの詳細:	カートン製の包装または顧客の要求に応じて包装
受渡し時間:	5-8営業日
支払条件:	L/C、T/T、Western Union
供給の能力:	1週あたりの10,000

詳細製品概要

製品名:	サスペンションエアスプリング	春の素材:	天然ゴム+アルミニウムカバー
品質:	100％テスト	保証:	12か月
色:	黒	contitech:	FD 44-10 DI
畳み込み:	2	ファイアストーン:	W01R584051
ハイライト:	Firestone suspension air spring , double convoluted rubber bellows , 4 1/2 inch balloon spring

4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring

High-quality air spring designed for heavy duty truck suspension systems, manufactured with rubber and steel components.

Product Specifications

Item	Value
Part Number	2B4.5x2P
Type	Air Spring
Warranty	12 Months
Truck Model	Heavy Duty Truck
Color	Black
Place of Origin	Guangzhou, China
Certification	ISO/TS16949:2009
Material	Rubber + Steel
Packing	Neutral Packing
MOQ	1 Pcs
Quality	High-Quality
Position	Auto/Truck parts
Application	Auto Suspension Systems

FD 44-10 DI Contitech Air Spring Technical Data

Maximum Height	150mm
Minimum Height	65mm
Cover Diameter	110mm
Number of Threaded Holes (Top Cover)	3
Threaded Hole Size (Top Cover)	M6
Number of Threaded Holes (Bottom Cover)	3
Threaded Hole Size (Bottom Cover)	M6
Distance Between Threaded Holes	93mm
Maximum Outside Diameter	125mm

Vibration Isolation - Dynamic Characteristic Values

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Force(Load) (KN)	1.1	1.5	2	2.4	2.8	3.2	0.7
Spring Rate (N/mm)	44	56	68	80.5	92.5	104
Natural Frequency f0 (Hz)	3.2	3	3	2.9	2.9	2.8

Pneumatic Application - Static Characteristic Values

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Height H (mm) 140	0.8	1.14	1.48	1.82	2.18	2.54	0.74
Height H (mm) 120	1.36	1.86	2.37	2.89	3.4	3.93	0.66
Height H (mm) 100	1.82	2.45	3.09	3.73	4.38	5.03	0.54
Height H (mm) 80	2.29	3.06	3.84	4.62	5.41	6.21	0.4

Applications

Various applications for the vehicle industry such as steering damping, engine vibration damping, belt tensioning damping for engines and on driver seats in commercial vehicles
On household products such as washing machines
Special shock absorbers for bicycles
On commercial lawn mowers
In the medical equipment industry (e.g., on wheelchairs)
