| 起源の場所: | 中国広州 |
| ブランド名: | GUOMAT |
| 証明: | ISO/TS16949, ISO9001 |
| モデル番号: | 2B6147 |
| 最小注文数量: | 5 |
|---|---|
| 価格: | US$59.9-69.9/PC |
| パッケージの詳細: | 強力なカートンボックスまたは顧客の要件として |
| 受渡し時間: | 5-8営業日 |
| 支払条件: | L/C、D/A、D/P、Western Union |
| 供給の能力: | 1000pcs/週 |
| 商標: | グアマット | 材料: | ゴムと鋼 |
|---|---|---|---|
| 関数: | ショックを減らします | 状態: | 真新しい |
| ファイヤートーン: | W01-M58-6147 | 畳み込み: | 2 |
| 重さ: | 5.9キロ | 設計の高さ: | 241mm |
| ハイライト: | Firestone air spring for Scania,Convoluted suspension air shock,Scania air spring 2392114 |
||

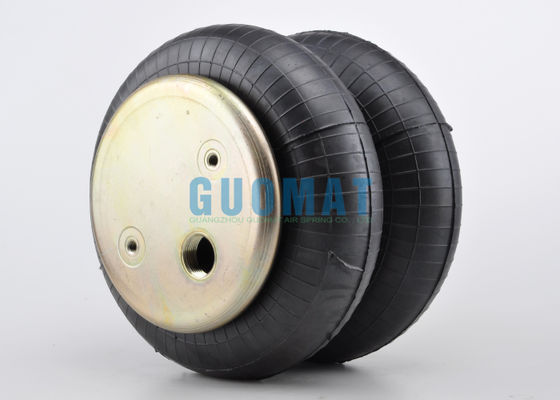

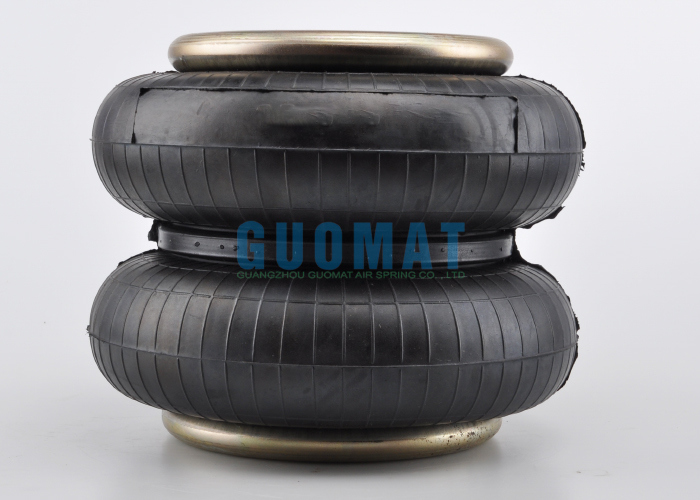

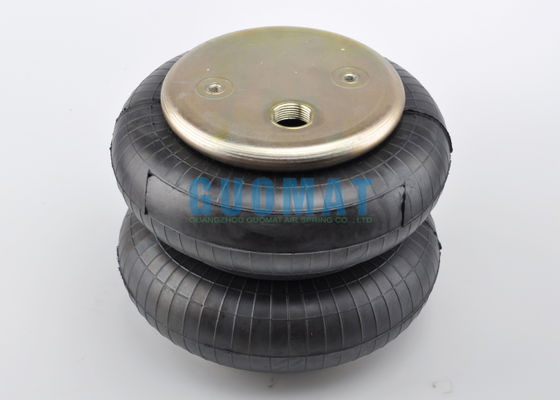

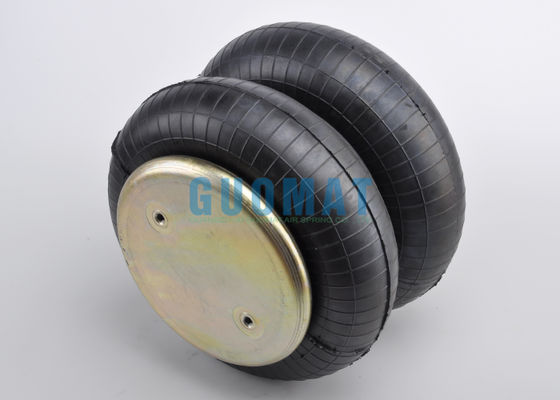

W01-M58-6147 Firestone Convoluted Air Spring 2392114 SCANIA Suspension Air Shock
Product Introduction
A suspension air spring is an elastic element that uses compressed air as its working medium. Enclosed within a cavity composed of a flexible membrane (rubber) and metal components, it leverages the compressibility of air to achieve its elastic action.
Compared to traditional steel coil springs, its core advantage lies in variable stiffness and adjustable vehicle height. Through the coordination of an electronic control system and an air supply unit, it automatically adjusts internal air pressure based on road conditions and driving mode, achieving a balance between comfort and support. It also automatically maintains vehicle height even when the vehicle load changes.
As a result, it is widely used in high-end passenger cars, commercial vehicles, and other applications with specific vehicle height requirements, significantly improving ride smoothness and handling stability.
Product Information
Product Name: Suspension Air Spring
Model Number: 2B6147
Material: Rubber and Steel
Warranty: 12 Months
Delivery Time: 3-7 Working Days
Product OEM Number
Firestone Part Number: W01-M58-6147 / WO1-M58-6147
Firestone Part Number: W01 M58 6147 / WO1 M58 6147
Firestone Part Number: W01M586147 / WO1M586147
Firestone Bellows Number: 228C1.5
Scania OEM Number: 2392114
Scania OEM Number: 5776010
Scania OEM Number: 2326609
Fabio Number: 2DC-320-10C
Product Technical Data
| Top Cover Plate Diameter | 227mm |
| Bottom Cover Plate Diameter | 227mm |
| Gas Hole / Air inlet | M14X1.5 |
| Rubber Bellows Diameter | 300mm |
| Natural Height | 241mm |
| Top Cover Plate Screw (Nut) Tooth | 2XM10X1.5 |
| Bottom Cover Plate Screw (Nut) Tooth | 2XM10X1.5 |
| Screw Center Distance of Top Cover Plate | 157.5mm |
| Screw Center Distance of Bottom Cover Plate | 157.5mm |
Product Packing
Net Weight: 5.9KG
Packing Size: 80X115X88CM
Product Quantity: 54PCS
