W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring

W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring

  • W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring
  • W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring
  • W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring
W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring
商品の詳細:
起源の場所: 広東省、中国
ブランド名: GUOMAT
証明: ISO/TS16949, ISO9001
モデル番号: 2B6107
お支払配送条件:
最小注文数量: 1
価格: US$59.9-69.9/PC
パッケージの詳細: 強力なカートンボックスまたは顧客の要件として
受渡し時間: 5~8営業日
支払条件: L/C、D/A、D/P、Western Union
供給の能力: 1000pcs/週
連絡先
詳細製品概要
品質: 100%テスト アフターサービス: 12ヶ月
空気穴: 1/4 BSP ファイアストーン: W01-M58-6107
畳み込み: 2 接続方法: 盲目のナット
Max.Height: 394mm 最小、高さ: 77mm
ハイライト:

Firestone Suspension Air Spring

,

Double Convoluted Air Spring

,

1/4 BSP Rubber Bellows

W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring

The GUOMAT 2B6107 is a double-curved air spring with the exact same specifications as the Firestone W01-M58-6107. Its signature "gourd-shaped" design provides excellent stability and flexible travel through a central waist ring.

It is primarily used in the suspension systems of commercial vehicles such as buses and trucks. Its core function is to dampen road vibrations, automatically adjust the vehicle height, thereby improving ride comfort, protecting cargo, and maintaining vehicle stability. This is a highly reliable component designed specifically for heavy-duty operating conditions.

Product Characteristics
Cover Plate
Top Cover Plate Diameter 287 mm
Screw Center Distance of Top Cover Plate 159 mm
Bottom Cover Plate Diameter 287 mm
Screw Center Distance of Bottom Cover Plate 159 mm
Nut/Blind Nuts
Top Cover Plate Threaded Hole M8X1.25
Bottom Cover Plate Screw(Nut) Tooth M8X1.25
Gas Hole/Air Inlet/Air Fitting
Air Hole 1/4BSP
Rubber Bellow
Rubber Bellow Max. Diameter 394 mm
Minimum Height 77 mm
Maximum Height 394 mm
Part Number Model
FIRESTONE OEM NUMBER: W01-M58-6107
FIRESTONE OEM NUMBER: W01 M58 6107
FIRESTONE OEM NUMBER: W01M586107
FIRESTONE OEM NUMBER: 233-2
Assembly Height (mm) Volume@7 BAR (cu cm) kN Force @3BAR @4BAR @5BAR @6BAR @7BAR @8BAR
320 26307 560 14.44 50.52 26.35 33.20 39.23
280 23714 653 17.82 24.56 31.24 38.87 45.73
240 20846 729 20.39 27.85 35.13 43.41 51.04
200 17673 799 22.69 30.81 38.73 41.65 55.94
160 14250 859 24.68 33.30 41.87 51.34 60.11
120 10748 892 25.94 34.86 43.76 53.44 62.41
80 6382 889 26.62 35.40 44.31 53.60 62.25
Product Images

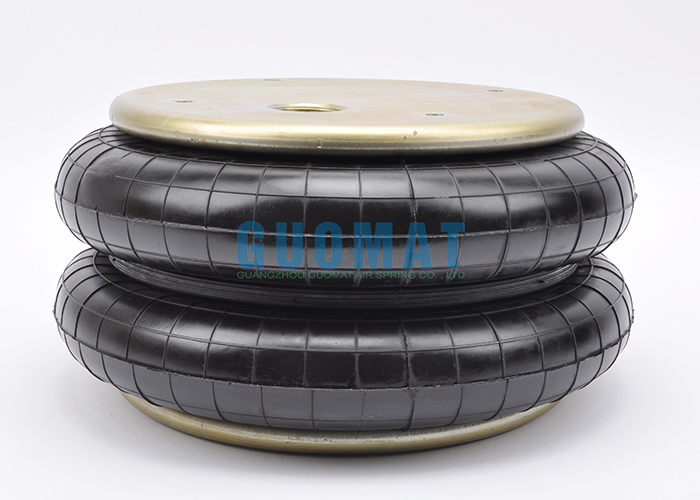

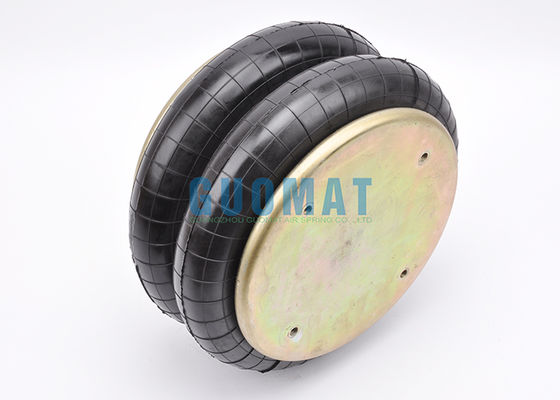

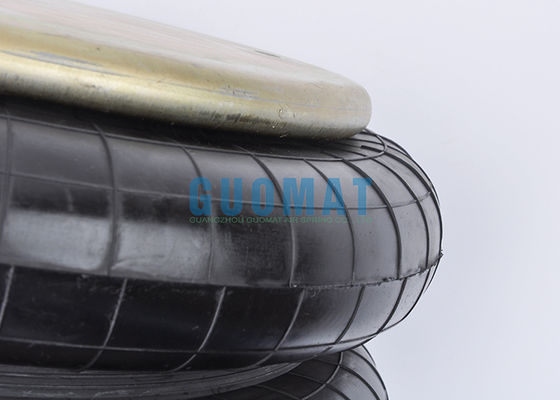

W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring 0 W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring 1
