1B8-580 Goodyear Air Suspension Spring Assembly W01-358-7598 Firestone Rubber Air Shock

商品の詳細:

起源の場所:	広東省、中国
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	1B8X6

お支払配送条件:

最小注文数量:	6pcs
価格:	$49.9-59.9/pc
パッケージの詳細:	強力なカートンボックスまたは顧客が必要とするように
受渡し時間:	2-8勤務日
支払条件:	T/T、Western Union、L/C
供給の能力:	1000pcs/週

詳細製品概要

材料:	ゴムと鋼	保証:	12ヶ月
関数:	ショックを減らします	ゴムタイプ:	天然ゴム
製品名:	エアスプリング/エアベローズ/エアバッグ	作業ストローク:	120mm
エアフィッティング:	1/4-18NPT	グッドイヤー:	1B8-580
ハイライト:	Goodyear air suspension spring assembly , Firestone rubber air shock , industrial air spring with warranty

1B8-580 Goodyear Air Suspension Spring Assembly W01-358-7598 Firestone Rubber Air Shock

Product Description

Industrial Air Spring

GUOMAT Number	1B8X6
Working Temperature	-40℃ to +70℃
Failure Testing	≥3 millions

Technical Data

Top Cover Plate Diameter: 135mm
Bottom Cover Plate Diameter: 135mm
Gas Hole / Air inlet: 1/4-18NPT
Rubber Bellows Natural Diameter: 190mm
The Working Stroke: MAX 180 mm to MIN 60 mm
Top Cover Plate Screw (Nut) Tooth: 2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth: 2X3/8-16UNC
Screw Center Distance of Top Cover Plate: 70mm
Screw Center Distance of Bottom Cover Plate: 70mm

Notice: These air suspension bags are aftermarket ones. They will replace the original air spring bags. Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts. Instruction isn't included. Professional installation is recommended. Contact us please for whatever we can help.

OEM Numbers

GOODYEAR Air Spring Part Number: 1B8-580

GOODYEAR Air Spring Part Number: 1B 8-580

GOODYEAR Air Spring Part Number: 1B8 580

GOODYEAR Air Spring Part Number: 1B8580

FIRETSONE Air Bags Part Number: W01-358-7598

FIRETSONE Air Bags Part Number: W01 358 7598

FIRETSONE Air Bags Part Number: W013587598

FIRETSONE Bellows Part Number: Style 116-1

FIRETSONE Air Bags Part Number: W01-358-7605

FIRETSONE Air Bags Part Number: W01 358 7605

FIRETSONE Air Bags Part Number: W013587605

Force Table

Assembly Height (in.)	Volume@100PSIG (in3)	Pounds Force @20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
6.0	237	360	750	1150	1580	2090
5.0	210	540	1100	1650	2240	2920
4.0	178	650	1330	2000	2710	3490
3.0	139	710	1450	2200	2980	3810

Applications of Air Springs in Paper Filter Presses

As a "Smart" Pressure Source: Multiple air chambers are arranged along the axial direction of the pressure roller, allowing for independent pressure control. This precisely compensates for the natural curvature of the roller, ensuring uniform pressure across the entire paper web and significantly improving the uniformity of paper quality.
As an Elastic Buffer: The flexibility of air springs effectively absorbs the impact from paper web joints or thickness fluctuations, protecting the equipment and reducing paper breaks. It also allows for more flexible pressure adjustment, quickly adapting to different paper types and production needs.

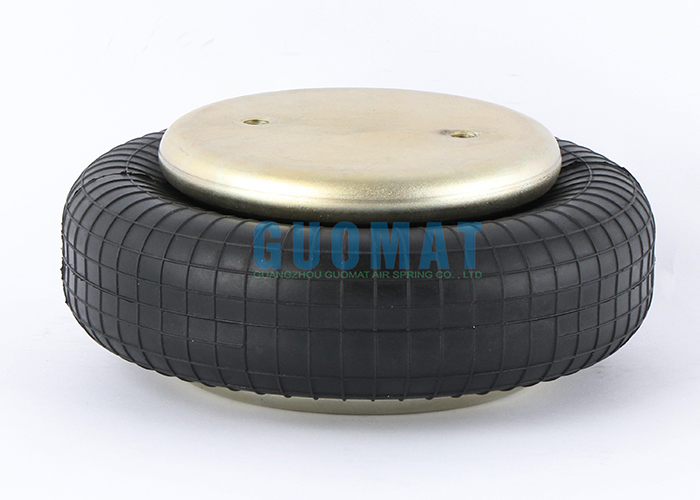

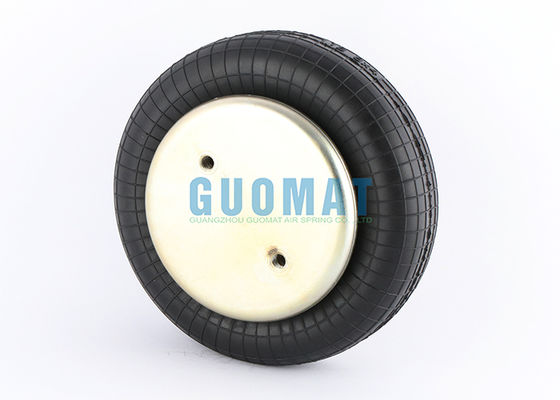

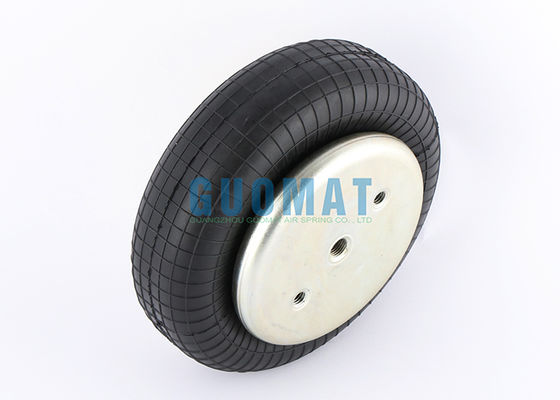

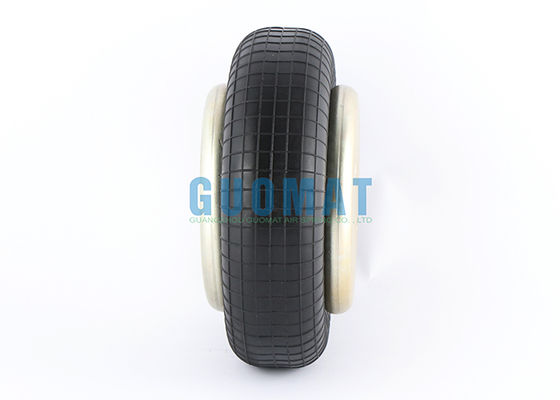

Product Images
