| 起源の場所: | 広東省、中国 |
| ブランド名: | GUOMAT |
| 証明: | ISO/TS16949:2009 |
| モデル番号: | 2H250180 |
| 最小注文数量: | 6pcs |
|---|---|
| 価格: | $139.9-149.9/pc |
| パッケージの詳細: | 強力なカートンボックスまたは顧客が必要とするように |
| 受渡し時間: | 2-8勤務日 |
| 支払条件: | L/C、T/T、ウェスタンユニオン |
| 供給の能力: | 1000pcs/週 |
| 製品名: | 工業用空気ばね/エアバッグ/気球/エアリフト | 材料: | 高さの質のゴム |
|---|---|---|---|
| 保証: | 12ヶ月 | OEM: | 利用可能 |
| クロス番号: | Tor-Press 245 モデル | 標準: | 93740 |
| 畳み込み: | 2 | 接続穴: | m 8 x 1.25 |

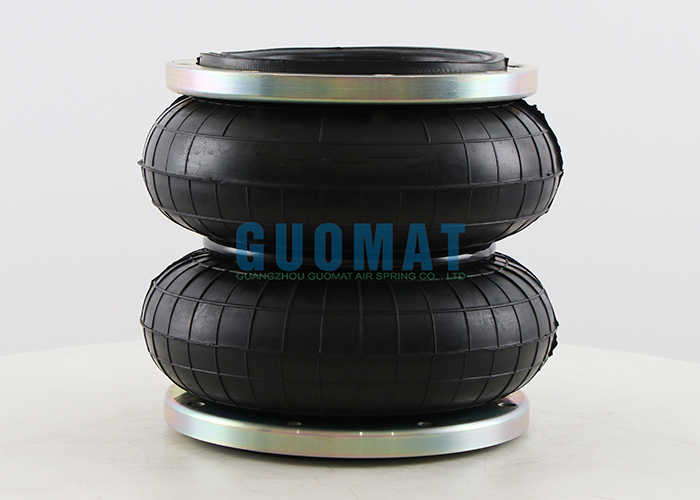

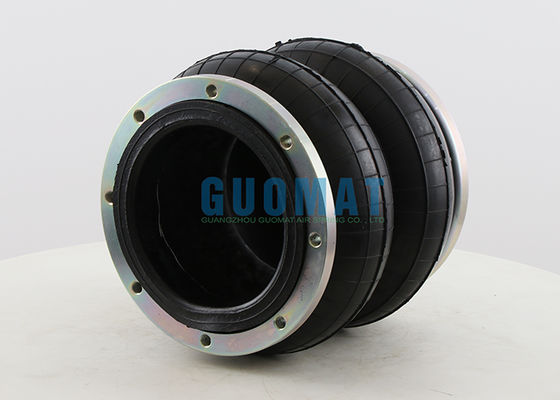

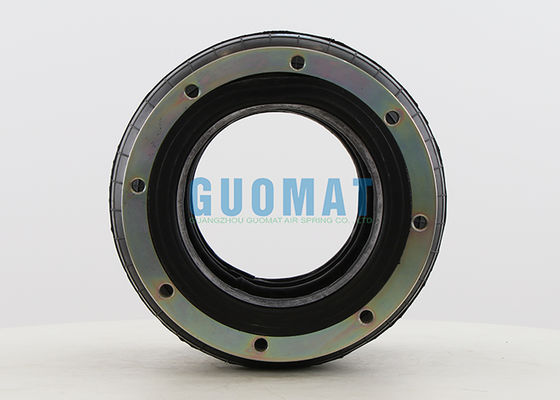

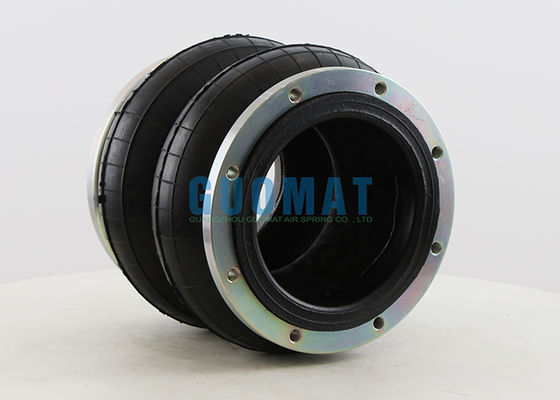

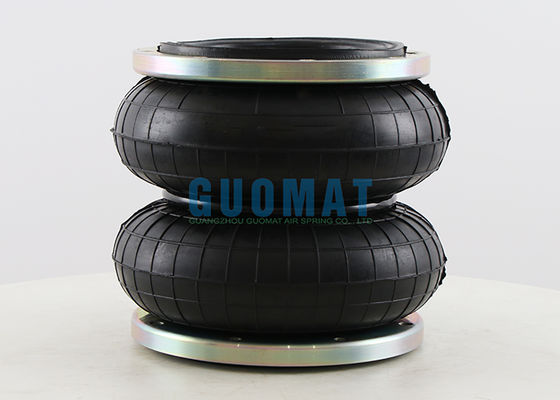

| ハイライト: | Universal Air Lift Bag 245,Double Convoluted Air Spring,Industrial Machine Air Spring |
||
Brand: GUOMAT
Model: 2H250180
Replace Tor-press 245
Replace Standard Code 93740
| Connection | F1 |
| Max.OD | 270 mm |
| Min.Height | 85 mm |
| Max.Height | 245 mm |
| Static Height | 165 mm |
| Effec.Area | 169 cm2 |
| Cap. | 1150 daN |
| Freq. | 127 cicli/1' |
| Stiffness | 12 DaN/mm |
| Threaded Air Hole | - |
| Center Distance of Holes | 145 mm |
| Flange Diameter | 200 mm |
| Connecting Number | 8pcs |
| Bolts or Holes | M8X1.25 |
| Total Travel | 225mm |
| Thrusts Max. | 2680daN |
| Thrusts Min. | 740daN |
| Thrusts in daN Pressures P=0.6 MPa (6 bar) Based On Travel | Travel in mm |
|---|---|
| 2680 | (0) |
| 2620 | (20) |
| 2560 | (40) |
| 2460 | (60) |
| 2320 | (80) |
| 2160 | (100) |
| 1960 | (120) |
| 1760 | (140) |
| 1540 | (160) |
| 1300 | (180) |
| 1060 | (200) |
| 810 | (220) |
Simply put, flange-connected air springs change their internal air pressure by filling and expelling compressed air, thus achieving functions such as height adjustment, load support, and vibration damping/isolation.
Compressed air is filled into the air chamber, increasing the internal pressure. This causes the air chamber to expand, increasing its height and thus lifting the load above it, providing rigid support.
The compressed air is released from the air chamber, decreasing the internal pressure. The air chamber contracts under the weight of the load, lowering its height, and the load decreases accordingly.
After filling with an appropriate amount of air, the system is closed to maintain a constant internal air pressure, thus providing a stable support height and load-bearing capacity.
