S-300-4R YOKOHAMA Industrial Air Spring 206mm Natural Height Air Rubber With Waist Ring

商品の詳細:

起源の場所:	広東省、中国
ブランド名:	GUOMAT
証明:	ISO/TS16949, ISO9001
モデル番号:	F-300-4

お支払配送条件:

最小注文数量:	1
価格:	交渉可能
パッケージの詳細:	強力なカートンボックスまたは顧客の要件として
受渡し時間:	5～8営業日
支払条件:	L/C、D/A、D/P、Western Union
供給の能力:	1000pcs/週

詳細製品概要

構造:	クワッドラ巻き込み	品質:	100％テスト
fuction:	ショックを減らします	商標:	グアマット
アフターサービス:	12ヶ月	使用温度:	-40℃+70℃
ヨーコハマ:	S-300-4R	色:	黒
ハイライト:	Yokohama industrial air spring , 206mm natural height air spring , air rubber spring with waist ring

S-300-4R YOKOHAMA Industrial Air Spring 206mm Natural Height Air Rubber With Waist Ring

Part Number
AIRSUSTECH Part No.: F-300-4
YOKOHAMA S-300-4R
YOKOHAMA S 300 4R
YOKOHAMA S-300-4

Product Application

Automation technology
Conveyor systems
Agricultural machinery
Food industry
Paper and textile equipment
Pantograph drives
Sawmill machinery
Punch and forming presses
Bellow paper machine equipment

GUOMAT \| YOKOHAMA	Height H (mm)	Common Max.Stroke	Compression Max OD	Approximate values at standard height and internal pressure of 0.49 MPa	Use maximum internal pressure
F-300-4 \| S-300-4	206	326	111	±80	360
F-300-3 \| S-300-3	152	242	82	±60	360
F-300-2 \| S-300-2	98	158	53	±40	360
F-300-1 \| S-300-1	72	117	40	±30	400

Advantages Compared to Mechanical Springs

Constant pressure: Within its stroke range, air springs provide a very stable force, while the force of a mechanical spring varies with compression.
Adjustable pressure: Output force can be easily changed by simply adjusting the intake pressure, adapting to different molds and processes.
Long stroke: Compared to a mechanical spring of the same size, air springs have a longer effective working stroke.
Long lifespan: High-quality air springs can last for millions of cycles, far exceeding the lifespan of mechanical springs.
Flexible installation: Compact design, easy to arrange in molds.

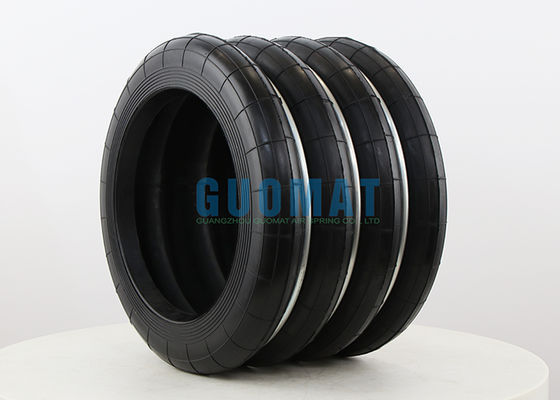

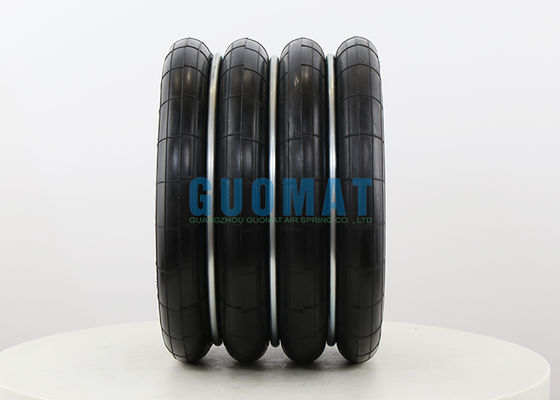

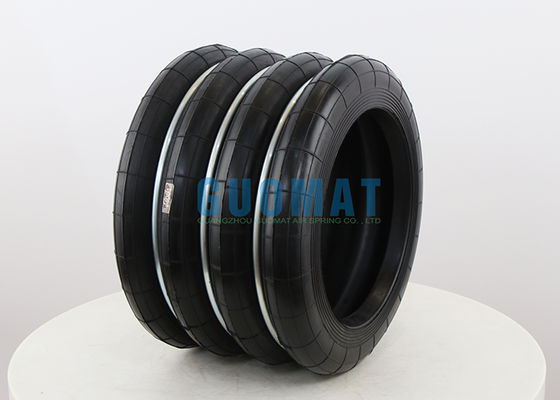

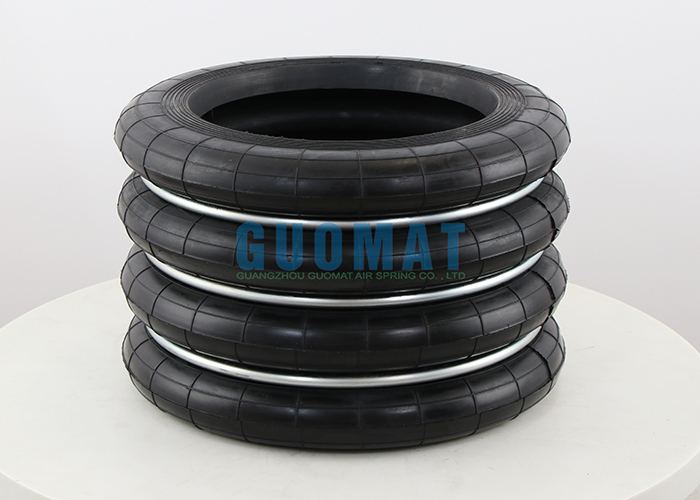

Product Images
