W01-358-9030 Firestone Air Ride Springs 1/4 NPT Air Fitting Truck Air Suspension Parts

商品の詳細:

起源の場所:	広東省、中国
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	1T9030

お支払配送条件:

最小注文数量:	6個
価格:	$79.9-99.9/pc
パッケージの詳細:	強力なカートンボックスまたは顧客の必要に応じて
受渡し時間:	2～8営業日
支払条件:	L/C、T/T、ウェスタンユニオン
供給の能力:	1000個/週

詳細製品概要

アイテム:	トラック組立用空気ばね	材料:	ゴム+スチール
保証:	1年	応用:	トラック/トレーラー/半トレーラーのため
ユニバーサルフィット:	直接交換	タイプ:	空気バネ
ファイアストーン:	1T15M-0 / W01-358-9030	ねじ付き穴:	3/8-16UNC
ハイライト:	Firestone air ride springs 1/4 NPT , truck air suspension parts , Firestone air springs with fitting

W01-358-9030 Firestone Air Ride Springs 1/4 NPT Air Fitting Truck Air Suspension Parts

The 1T9030 air ride spring is a heavy-duty reversible sleeve air spring designed for commercial truck air suspension systems. It helps maintain vehicle ride height, absorb road shock, and support dynamic load changes to ensure stable and comfortable operation in demanding transport environments.

Part Number:

1T9030

Material:

Rubber and Steel

Warranty:

1 Year

Application:

Truck Suspension

Function:

Reduce Vibration

Cross-Reference Part Numbers

Firestone Style Number

1T15M-0

Firestone Assembly Numbers

W013589030
W01 358 9030
W01-358-9030
WO13589030
WO1 358 9030
WO1-358-9030

Related Part Numbers

Blind nuts, 1/4NPT: W013589030, W01 358 9030, W01-358-9030
Blind nuts, 1/4NPT, rubber bumper: W013589031, W01 358 9031, W01-358-9031
Blind nuts, 3/4NPT: W013589034, W01 358 9034, W01-358-9034
Blind nuts, 3/4NPT, rubber bumper: W013589036, W01 358 9036, W01-358-9036
Countersunk steel bead ring, 1 3/8 bolts, nuts, washers: W013589038, W01 358 9038, W01-358-9038
Integral studs, 1/4NPT: W013589035, W01 358 9035, W01-358-9035

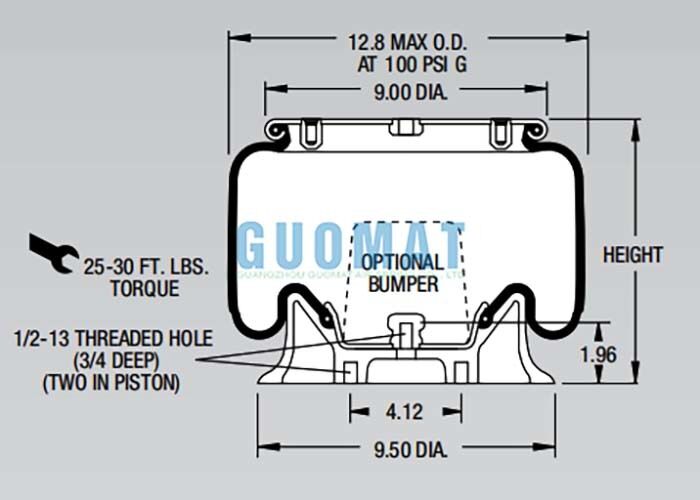

Technical Specifications

Top Cover Diameter:

9.00 inches

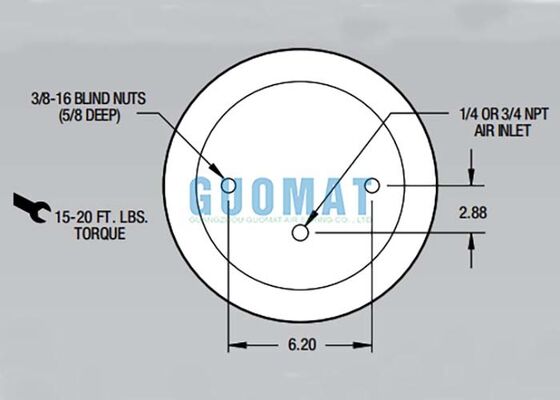

Top Cover Bolts:

Two 3/8-16 bolts, 6.20 inches center-to-center

Vent:

1/4 NPT, 2.88 inches center-to-center from threaded holes

Base Diameter:

9.50 inches

Base Height:

1.96 inches

Base Bolts:

Two 1/2-13 bolts, 4.12 inches center-to-center

Natural Height:

7.50 inches

Maximum Height:

13.00 inches

Minimum Height:

4.30 inches

Performance Data

Assembly Height (in.)	Volume @ 100 PSIG (in³)	@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
11	737	980	1920	2980	4120	5300
10	675	1180	2380	3550	4810	6130
9	606	1270	2540	3910	5290	6710
8	534	1300	2630	4080	5500	6950
7	462	1320	2690	4140	5570	7010
6	389	1350	2730	4170	5610	7070
5	314	1410	2840	4310	5840	7370

Benefits of Air Springs in Truck Suspension

Maintaining consistent chassis height
Reducing stress on leaf springs and frame components
Improving braking stability and tire contact
Enhancing driver comfort during long-distance hauling

Unlike conventional steel springs, air springs offer adjustable stiffness and better vibration damping, which is why they are widely adopted in commercial vehicles.
