W01-358-7788 Firestone Double Convoluted Suspension Spring FD 200-19 510 Contitech Rubber Air Bag

商品の詳細:

起源の場所:	広東省、中国
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	2B7788

お支払配送条件:

最小注文数量:	6個
価格:	$59.9-69.9/pc
パッケージの詳細:	強力なカートンボックスまたは顧客の必要に応じて
受渡し時間:	2～8営業日
支払条件:	T/T、ウェスタンユニオン、L/C
供給の能力:	1000個/週

詳細製品概要

名前:	エアショックエアスプリングエアバッグ	材料:	ゴム+金属
保証:	12ヶ月	関数:	振動を減らします
Min. Pressure:	0棒	ファイアストーン:	W01-358-7788 について
重さ:	3KG	梱包サイズ:	242424 （cm）
ハイライト:	Firestone double convoluted air spring , Contitech rubber suspension spring , FD 200-19 industrial air bag

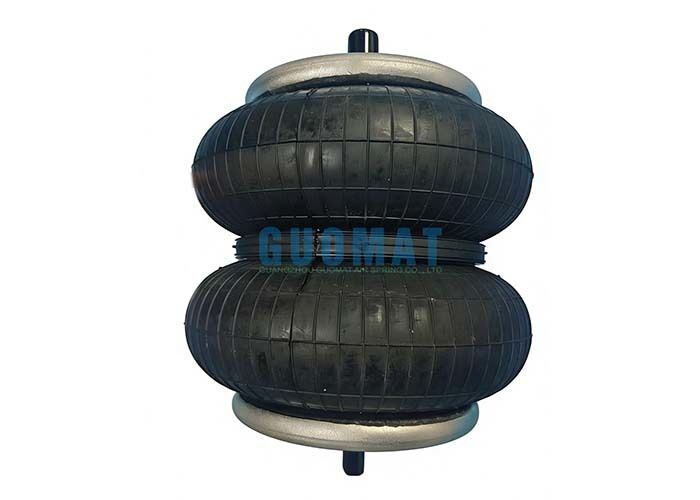

W01-358-7788 Firestone Double Convoluted Suspension Spring FD 200-19 510 Contitech Rubber Air Bag

Product Specifications

Type: Double Convoluted Air Spring

Brand: GUOMAT

Model Number: 2B7788

Material: Rubber and Steel

Technical Parameters

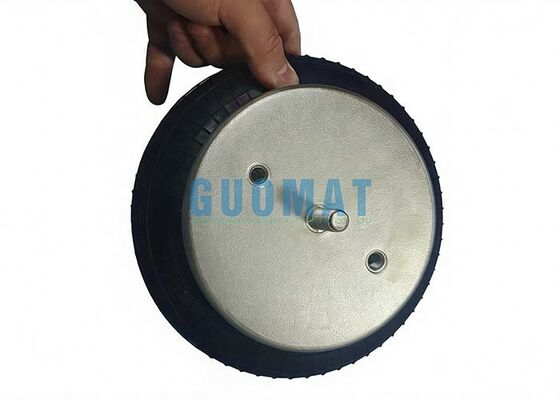

Cover Plate Diameter: 160mm
Maximum Outer Diameter: 251.5mm
Working Stroke: 179mm
Air Inlet Type: Metric
Minimum Temperature: -40°F
Maximum Temperature: +70°F
Bellows Type: Double Convoluted
Threaded Hole Center Distance: 89mm

Replacement Part Numbers

Manufacturer	Part Numbers
Firestone	W01-358-7788; W013587788; W01 358 7788
Contitech	FD200-19 510; FD 200-19 510
Goodyear	2B9-245; 2B 9-245; 2B9 245
Goodyear	578923202; 578 92 3 202; 578-923-202
Triangle	6325
Triangle	4510
Watson & Chalin	AS-0088
Watson & Chalin	AS-0088G
