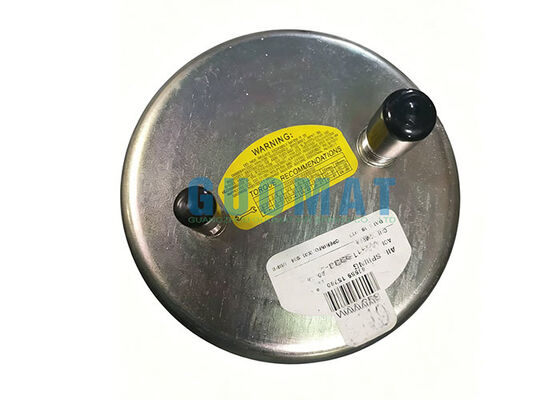

W01-358-5323 Original Firestone Rolling Lobe Air Spring 1T14C-1 Air Bellows Supplier

商品の詳細:

起源の場所:	広東省、中国
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	1T5323

お支払配送条件:

最小注文数量:	6個
価格:	$79.9-89.9/pc
パッケージの詳細:	強力なカートンボックスまたは顧客の必要に応じて
受渡し時間:	2～8営業日
支払条件:	L/C、T/T、ウェスタンユニオン
供給の能力:	1000個/週

詳細製品概要

製品名:	エアサスペンションスプリング	保証:	12ヶ月
色:	黒	パッケージ:	カートン
関数:	衝撃を軽減	ベローズタイプ:	1T14C-1
OEM番号:	W01-358-5323	品質:	100%テスト済み
ハイライト:	Firestone rolling lobe air spring , Truck air bellows 1T14C-1 , Original Firestone air spring with warranty

W01-358-5323 Original Firestone Rolling Lobe Air Spring 1T14C-1 Air Bellows

High-quality replacement air spring designed to meet original Firestone specifications for heavy-duty truck applications.

Product Specifications

Parameter	Details
Product Name	Truck Air Spring
Brand	GUOMAT
Model No.	1T5323
Material	Rubber + Steel
OEM Quality	High Quality

Firestone Compatibility

Original Firestone Style: 1T14C-1

Original Firestone Air Spring: W013585323
Original Firestone Air Spring: W01 358 5323
Original Firestone Air Spring: W01-358-5323
Original Firestone Air Spring: WO13585323
Original Firestone Air Spring: WO1 358 5323
Original Firestone Air Spring: WO1-358-5323

Technical Data

Specification	Value
Assembly Weight	6.8 lbs
Design Height	8-9.5 inches
Minimum Jounce Height	5.4 inches
Maximum Rebound Height	13.26 inches
Loading Capacity at 20 psig	616 lbsf
Loading Capacity at 60 psig	1,848 lbsf
Loading Capacity at 90 psig	2,772 lbsf
Natural Frequency	Hz
Maximum Diameter	9.1 inches
Material Type	Natural Rubber

Cross-Reference Compatibility

Firestone Style	Firestone No.	Replaces
1T14C-1	W01-358-5323	Air Ax (Roelofs), Granning 7504, Ridewell, 1003585323C
1T14C-1	W01-358-5328	American Carrier 8003-017
1T14C-1	W01-358-5343	Veco 504035755

Packaging & Shipping

Secure Packaging: Each air spring is individually packed with protective materials and placed in strong export cartons to prevent damage during transit.

Delivery Time: Stock items: 3-7 days | Bulk orders: 7-25 days

Shipping Methods: Express (DHL/FedEx), Air Freight, or Sea Freight available

Trade Terms: EXW / FOB / CIF / DAP supported

Quality Assurance: 100% tested before shipment to ensure reliable performance
