FT 530-35 CI Contitech Rubber Air Spring G1/4 Air Fitting Pneumatic Bellows Manufacturer

FT 530-35 CI Contitech Rubber Air Spring G1/4 Air Fitting Pneumatic Bellows Manufacturer

  • FT 530-35 CI Contitech Rubber Air Spring G1/4 Air Fitting Pneumatic Bellows Manufacturer
  • FT 530-35 CI Contitech Rubber Air Spring G1/4 Air Fitting Pneumatic Bellows Manufacturer
  • FT 530-35 CI Contitech Rubber Air Spring G1/4 Air Fitting Pneumatic Bellows Manufacturer
FT 530-35 CI Contitech Rubber Air Spring G1/4 Air Fitting Pneumatic Bellows Manufacturer
商品の詳細:
起源の場所: 広東省、中国
ブランド名: GUOMAT
証明: ISO/TS16949:2009
モデル番号: 3B53035
お支払配送条件:
最小注文数量: 6個
価格: $99.9-119.9/pc
パッケージの詳細: 強力なカートンボックスまたは顧客の必要に応じて
受渡し時間: 2~8営業日
支払条件: L/C、T/T、ウェスタンユニオン
供給の能力: 1000個/週
連絡先
詳細製品概要
製品名: 巻き巻きされたゴムエアバッグ 材料: 高品質のゴム製
保証: 1年 価格条件: FOB中国
サンプル: 利用可能 手術: ガス封入
コンチテック: FT530-35 畳み込み: 3
ハイライト:

Contitech rubber air spring

,

G1/4 air fitting pneumatic bellows

,

industrial air spring with warranty

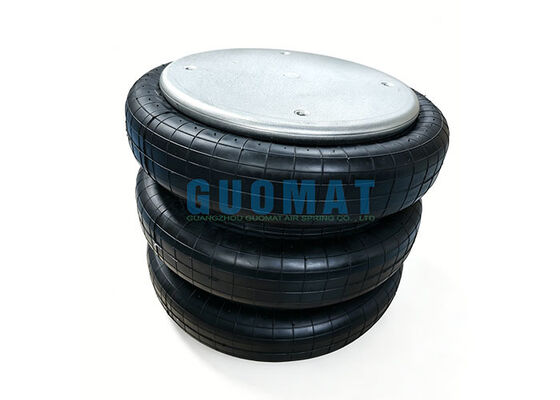

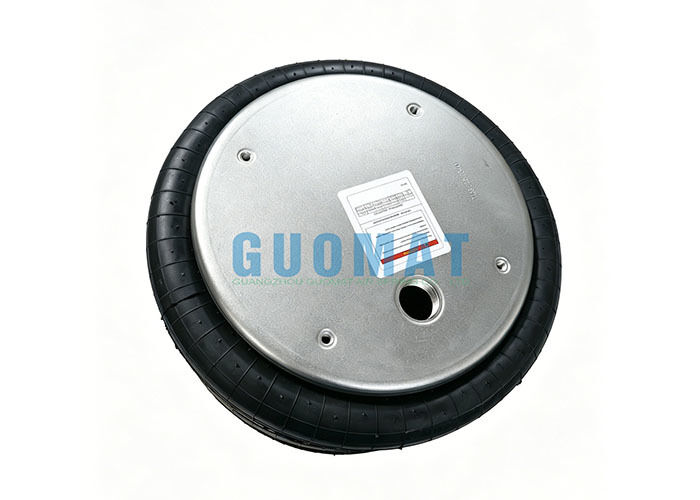

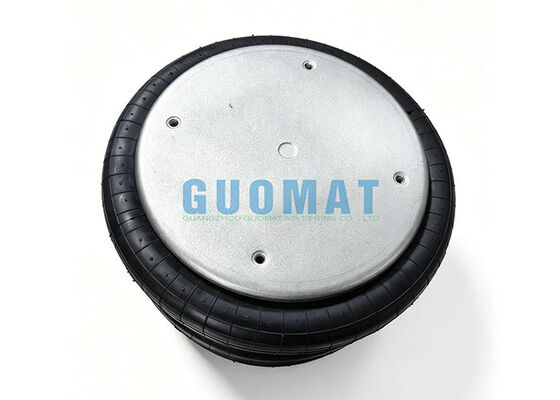

FT 530-35 CI Contitech Rubber Air Spring G1/4 Air Fitting Pneumatic Bellows
The GUOMAT 3B53035 air spring is manufactured from high-quality rubber materials using precision processes, designed specifically for stable pneumatic support and vibration absorption. This product serves as a direct replacement for the Contitech FT530-35, offering superior performance and durability for various industrial applications.
Product Specifications
Brand: GUOMAT
Model: 3B53035
Replacement for: Contitech FT530-35 / FT 530-35
Technical Data
Maximum height: 510mm
Minimum height: 110mm
Cover plate diameter: 287mm
Threaded holes: 4xM8
Center distance between threaded holes: 158.8mm
Maximum outer diameter: 405mm
Air inlet: G1/4 with 79.4mm offset
Pressure vs Height Performance Data
Height H (mm) 3 bar 4 bar 5 bar 6 bar 7 bar 8 bar Vol V(I)
380 17.7 23.8 30 36.4 42.9 49.1 31
300 21.3 28.4 36.1 43.4 50.7 58 25.4
220 24.3 32.3 40.4 48.5 56.6 64.6 19.4
140 27.3 36.3 45.4 54.5 63.4 72 12.4
Packaging & Shipping
GUOMAT air springs are securely packaged to prevent damage during transit. Custom packaging and shipping arrangements are available upon request.
Customer Benefits
Cost Savings
The GUOMAT 3B53035 offers a cost-effective alternative, saving you money without compromising on quality compared to high-priced OEM parts.
Reliability Assurance
All products undergo rigorous quality control and performance testing to ensure each component meets high standards.
Global Supply
GUOMAT provides high-quality air spring solutions worldwide, with fast delivery support.
If you have any questions or require additional information, please contact our customer service team for assistance.
Product Drawings
FT 530-35 CI Contitech Rubber Air Spring G1/4 Air Fitting Pneumatic Bellows Manufacturer 0 FT 530-35 CI Contitech Rubber Air Spring G1/4 Air Fitting Pneumatic Bellows Manufacturer 1
