| 起源の場所: | 広東省、中国 |
| ブランド名: | GUOMAT |
| 証明: | ISO/TS16949:2009 |
| モデル番号: | G3019 |
| 最小注文数量: | 6個 |
|---|---|
| 価格: | $49.9/pc-$89.9/pc |
| パッケージの詳細: | 強力なカートンボックスまたは顧客の必要に応じて |
| 受渡し時間: | 2～8営業日 |
| 支払条件: | T/T、ウェスタンユニオン、L/C、ペイパル、その他の交渉 |
| 供給の能力: | 10000個/週 |
| 主な材質: | ゴム | 位置: | フロント |
|---|---|---|---|
| 工場保証: | 1年 | タイプ: | 空気圧 |
| トラック部品: | キャビンパーツ | コルス: | ファイアストーン W02-M58-3019 |

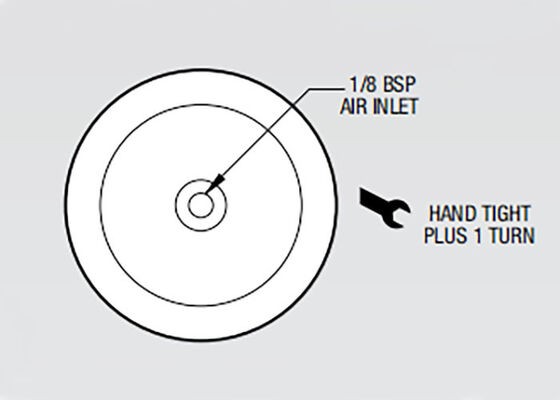

| ブランド: | グアマット | 空気穴: | 1/8BSP |
| ハイライト: | Firestone sleeve type air bellow,truck cabin air shock absorber,W02-M58-3019 shock absorber replacement |
||
| Item Description | Truck cab air spring |
| Model Number | G3019 |
| Size | Standard |
| Material | Rubber |
| Warranty | 12 Months |
| Assembly Height (mm) | Volume @7bar (cu cm) | EFF Area @7bar (cm²) | KN Force | ||||
|---|---|---|---|---|---|---|---|
| @3BAR | @4BAR | @5BAR | @6BAR | @7BAR | |||
| 55 | 80.30 | 10.4 | 0.32 | 0.41 | 0.52 | 0.62 | 0.73 |
| 45 | 7.46 | 13.6 | 0.42 | 0.55 | 0.68 | 0.82 | 0.95 |
| 35 | 58.99 | 14.8 | 0.45 | 0.60 | 0.75 | 0.90 | 1.04 |
| 25 | 40.56 | 15.6 | 0.49 | 0.64 | 0.79 | 0.94 | 1.09 |
GUOMAT G3019 Truck Cab Air Spring is designed as a direct replacement for Firestone W02-M58-3019, offering reliable performance and stable quality for heavy-duty truck cabin suspension systems. Manufactured with high-strength rubber and reinforced cord layers, the G3019 effectively absorbs vibration and reduces cabin shock, helping improve driver comfort and protect cabin components during long-distance transportation.
With precise dimensions and OEM-compatible installation design, GUOMAT G3019 can completely replace Firestone W02-M58-3019 without modification. It is widely used in truck cab suspension applications and provides excellent durability, air tightness, and long service life under demanding road conditions.
