Firestone Air Spring Assembly W01-358-7761 Industrial Vibration Isolation Solution

商品の詳細:

起源の場所:	中国広州
ブランド名:	GUOMAT
証明:	ISO/TS16949, ISO9001
モデル番号:	3H7761

お支払配送条件:

最小注文数量:	5個
価格:	交渉可能
パッケージの詳細:	強力なカートンボックスまたは顧客の要件として
受渡し時間:	3～7営業日
支払条件:	L/C、T/T、ウェスタンユニオンまたはその他
供給の能力:	1000個/週

詳細製品概要

保証:	1年	OE番号:	ファイアストーン W01-358-7761
材料:	ゴム+スチール	状態:	新鮮な空気泉
スプリングタイプ:	ガス充填	畳み込み:	3
タイプ:	フランジ接続	別名:	ショックアブソーバー
ハイライト:	Firestone air spring assembly , industrial vibration isolation solution , rubber air spring with warranty

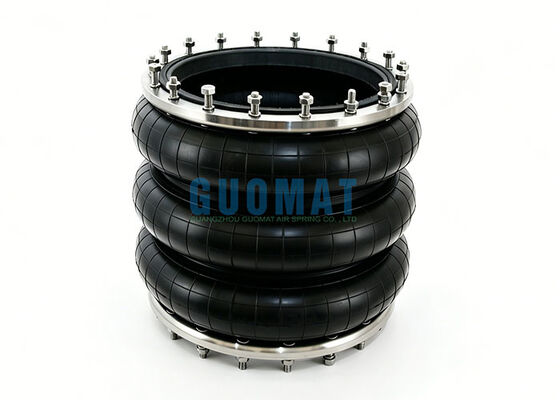

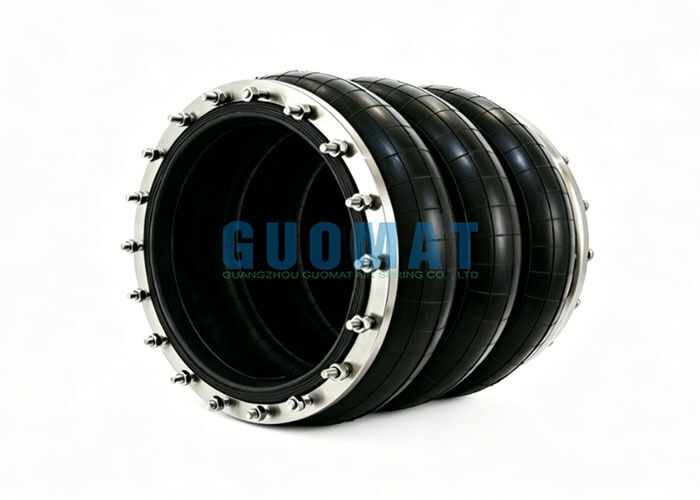

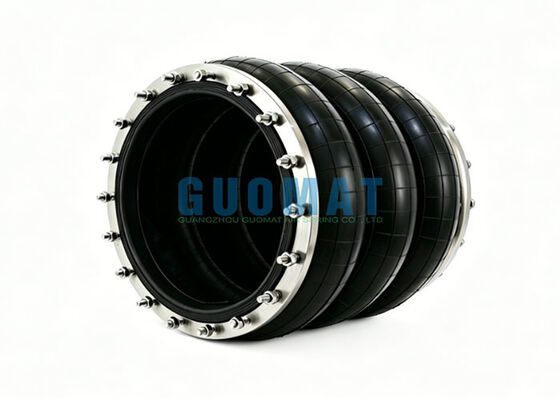

Firestone Air Spring Assembly W01-358-7761 Industrial Vibration Isolation Solution

Product Overview

The GUOMAT 3H7761 Flange Air Spring is engineered to provide exceptional vibration isolation, shock absorption, and load support for a wide range of industrial equipment. Designed as a direct replacement for Firestone W01-358-7761 (Style 312), this air spring assembly combines robust construction with reliable performance in demanding industrial environments.

Product Specifications

Type: Flange Air Spring
Brand: GUOMAT
Model No.: 3H7761
Warranty: 1 Year
Material: Rubber + Steel

Construction & Performance

Manufactured from premium rubber compounds reinforced with high-strength cord fabric, the GUOMAT 3H7761 delivers excellent resistance to fatigue, abrasion, and repeated compression cycles. The heavy-duty steel flange rings ensure secure mounting and long-term structural integrity, even under continuous operation.

Unlike traditional metal springs, the GUOMAT air spring utilizes compressed air as the elastic medium, allowing the system to adapt to varying loads while maintaining superior vibration isolation performance. This helps reduce machine noise, minimize structural stress, and extend the service life of surrounding components.

Cross-Reference Part Numbers

Firestone Style	312
Firestone	W013587761; W01 358 7761; W01-358-7761
Firestone	WO13587761; WO1 358 7761; WO1-358-7761

Technical Data

Bolt Specification	3/8-24 UNF (American Standard Fine Thread)
Number of Flange Ring Bolt Holes	18
Flange Ring Diameter	15.13 inches / 384.3 mm
Center Distance Between Bolts	13.81 inches / 350.7 mm
Airbag Outer Diameter	16.00 inches / 406.4 mm
Included Bolt Length	1.87 inches / 47.5 mm
Minimum Height	4.3 inches / 109.2 mm

Quality Assurance

Every GUOMAT 3H7761 air spring undergoes strict quality inspections and performance testing before shipment. Each unit is checked for air tightness, dimensional accuracy, and structural integrity to ensure reliable operation in industrial applications worldwide.

Whether used for machinery isolation, shock reduction, or pneumatic force generation, the GUOMAT 3H7761 provides a cost-effective and dependable alternative to the Firestone W01-358-7761 air spring assembly.
