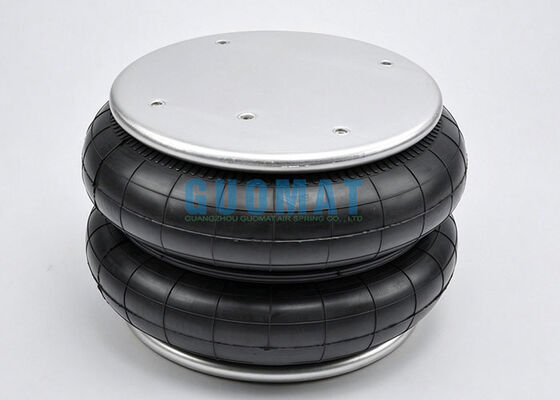

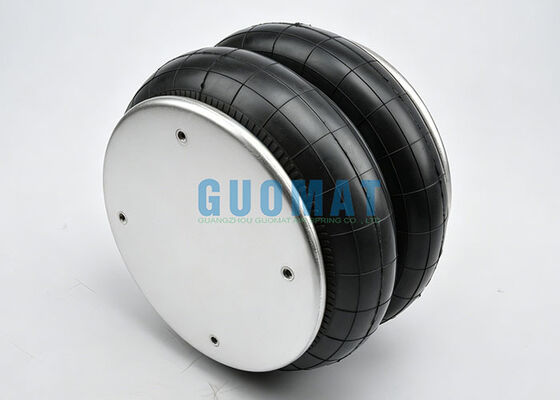

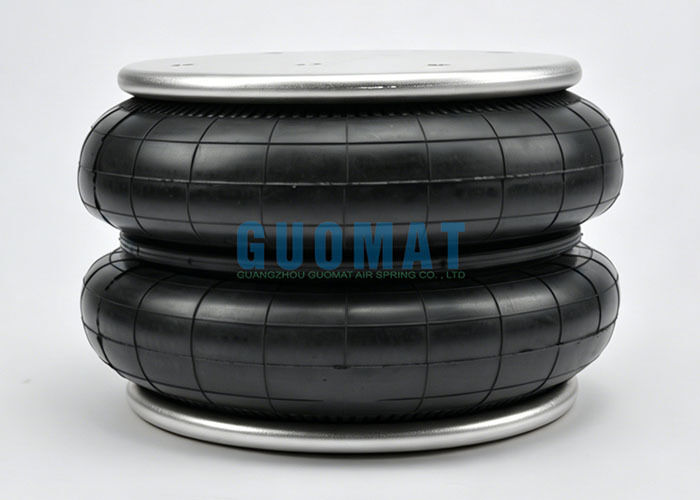

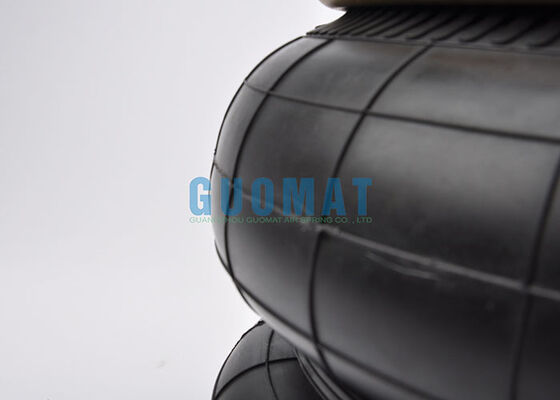

SP 2 B 34 R Phoenix Air Spring Replacement Threaded Holes Connected Air Bellows Manufacturer

商品の詳細:

起源の場所:	中国
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	2B53022M8G3/4

お支払配送条件:

最小注文数量:	6個
価格:	US$99.9-129.9/PC
パッケージの詳細:	強力なカートンボックスまたは顧客の必要に応じて
受渡し時間:	3～7営業日
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力:	1000個/週

詳細製品概要

名前:	ラバーエアスプリング	回旋:	2
フェニックス:	SP2B34R	保証期間:	12ヶ月
最大内圧:	0.7Mpa	キーワード:	エアスプリングバッグ
重さ:	10KG	パッケージ:	カートン
ハイライト:	Phoenix air spring replacement , threaded holes air bellow , rubber air spring manufacturer

SP 2 B 34 R Phoenix Air Spring Replacement

High-quality threaded holes connected air bellows manufactured by GUOMAT, designed as a direct replacement for Phoenix SP 2 B 34 R air springs.

Product Specifications

Type	Double Convoluted Air Spring
Brand	GUOMAT
Model Number	2B53022M8G3/4
Material	Rubber & Steel
Warranty	1 Year
Number of Convolutions	2

Compatible Part Numbers

PHOENIX: SP2B34R
PHOENIX: SP 2B34R
PHOENIX: SP 2B 34R
PHOENIX: SP 2B 34 R

Technical Dimensions

Cover Plate Diameter	290mm
Air Hole	G3/4
Threaded Hole	M8
Number of Threaded Holes	4 pieces
Center Distance Between Threaded Holes	158.8mm
Outer Diameter	390mm
Natural Height	190mm
Minimum Height	90mm
Maximum Height	260mm

Industrial Applications

Industrial machinery vibration isolation
Pneumatic lifting platforms
Packaging and processing equipment
Conveyor systems
Printing and textile machinery
Material handling equipment
Mechanical presses
Automation production lines

Packaging & Delivery

GUOMAT air springs are packed in strong export cartons with protective materials to ensure safe transportation. Bulk orders can be supplied with palletized packaging. Flexible shipping methods including express courier, air freight, sea freight, and railway transport are available worldwide.
