10''X3 Firestone Pneumatic Vibration Isolator W01R584059 Air Spring for Semiconductor Equipment

商品の詳細:

起源の場所:	中国
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	3B10X3T

お支払配送条件:

最小注文数量:	6個
価格:	US$129.9-159.9/PC
パッケージの詳細:	強力なカートンボックスまたは顧客の必要に応じて
受渡し時間:	3～7営業日
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力:	1000個/週

詳細製品概要

一部:	空気ばねはアクチュエーターをどなる	範囲を使用します:	工業機械
提供されるサービス:	OEM	接続方法:	フランジリング
品質:	100%テスト済み	パッケージ:	カートン
保証期間:	12ヶ月	ジャバラタイプ:	単一のうなり声
ハイライト:	Firestone pneumatic vibration isolator , 10x3 air spring for semiconductor , industrial air spring with warranty

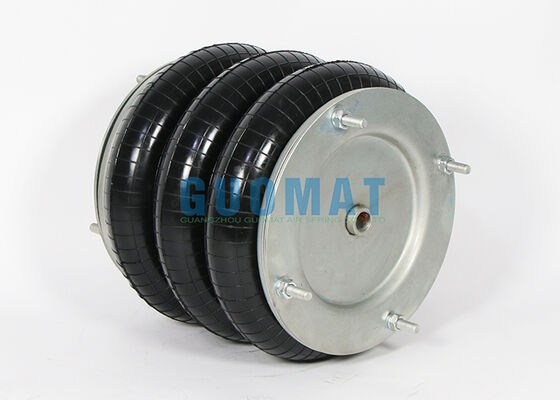

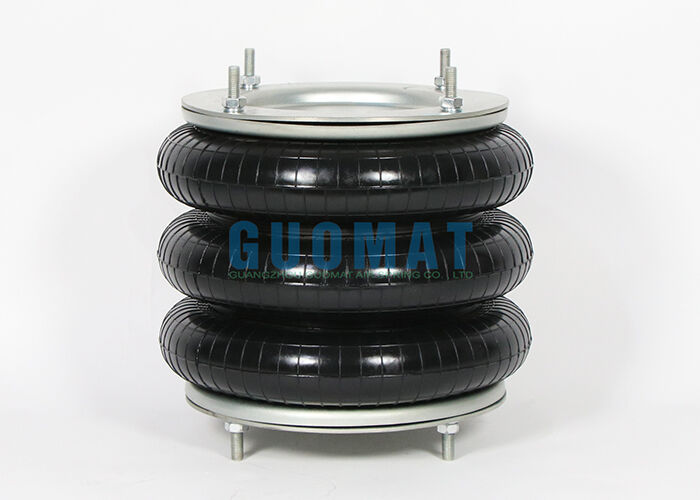

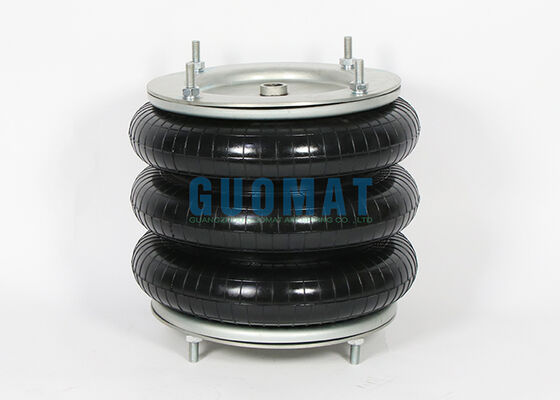

10"×3 Firestone Pneumatic Vibration Isolator W01R584059 Air Spring

High-performance triple convoluted pneumatic air spring designed for precision vibration isolation and load support in semiconductor equipment and industrial automation applications.

Product Specifications

Type: Pneumatic Vibration Isolator Air Spring
GUOMAT Model: 3B10X3T
Bellows Type: Triple Convoluted Air Spring
Replacement For: Firestone W01-R58-4059 (W01R584059)
Application: Semiconductor Equipment, Precision Manufacturing, Industrial Automation

Product Overview

The GUOMAT 3B10X3T is a precision-engineered 10" × 3 triple convoluted pneumatic air spring developed for demanding industrial environments. Manufactured with reinforced natural rubber and precision-engineered steel components, this air spring delivers excellent vertical flexibility, stable load distribution, and reliable damping performance. It effectively isolates vibration generated by production equipment, reducing resonance and improving operational accuracy in semiconductor manufacturing machines, inspection equipment, cleanroom automation, and other applications where vibration control is critical to product quality.

Compatible Part Numbers

Firestone: 10"×3, 10X3, W01R584059, W01 R58 4059, W01-R58-4059

Contitech: FT210-32DS, FT210-32 DS, FT 210-32 DS

Norgren: M/31103, M 31103, M31103

Technical Specifications

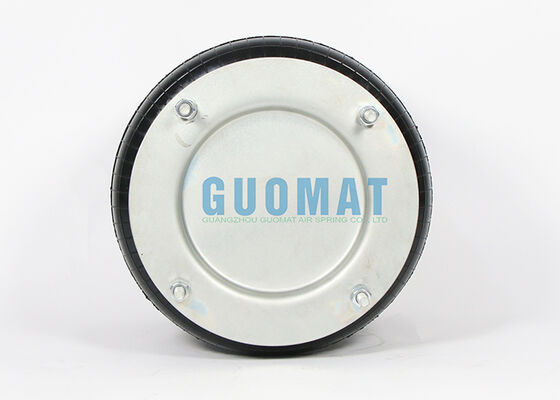

Cover plate diameter: 210mm
Air vent: G1/2
Threaded hole: M8
Number of threaded holes: 4
Center distance between threaded holes: 181mm
Maximum outer diameter: 270mm
Minimum height: 100mm
Maximum height: 430mm

Pressure vs. Height Performance Data

Height H (mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol. V(cm³)
100	1410	1875	2370	2850	3300	3784	2279
150	1320	1740	2190	2620	3045	3482	4494
200	1140	1530	1920	2280	2670	-	6609
300	705	945	1200	1440	1710	1974	10256
400	240	300	390	480	600	707	12981

Performance Advantages

Lower vibration transmission
Better noise reduction
Adjustable air pressure for different loads
Improved machine stability
Reduced maintenance requirements
Longer equipment service life
Enhanced product quality in precision manufacturing

These advantages make it especially suitable for high-value production environments where equipment stability directly affects manufacturing accuracy.
