6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption

6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption

  • 6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption
  • 6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption
  • 6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption
6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption
商品の詳細:
起源の場所: 中国
ブランド名: GUOMAT
証明: ISO/TS16949:2009
モデル番号: 2B6X2P
お支払配送条件:
最小注文数量: 6個
価格: US$129.9-159.9/PC
パッケージの詳細: 強力なカートンボックスまたは顧客の必要に応じて
受渡し時間: 3～7営業日
支払条件: ウェスタンユニオン、T/T、D/P、D/A、L/C
供給の能力: 1000個/週
連絡先
詳細製品概要
名前: ゴム製空気ばね 回旋: ダブル
OEM: 許容できる 保証: 12ヶ月保証
起源の場所: 広東省、中国 輸送パッケージ: カートン
ふいごは番号が付いている: 6インチ×2 コンチテック: W01-R58-4070
ハイライト:

Firestone Rubber Air Spring 6x2

,

W01R584070 Air Spring Shock Absorption

,

FD 76-14 DI Contitech Equipment Air Spring

6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption
The 6" x 2 Firestone W01R584070 rubber air spring is a high-performance double convoluted industrial air bellow designed for vibration isolation, load support, and shock absorption in industrial machinery and suspension systems.
The GUOMAT replacement model 2B6X2P is fully compatible with leading OEM part numbers such as Firestone W01-R58-4070, Contitech FD 76-14 DI, and Norgren PM/31062, making it a reliable and cost-effective aftermarket solution for a wide range of equipment applications.
OEM Compatibility
  • Continental ContiTech: FD 76-14 1/2 M8
  • Continental ContiTech: FD 76-14 DI G1/2
  • Continental ContiTech: FD 76-14 DI G1/2 M8
  • Continental ContiTech: FD 76-14 DI G1/2 CR
  • Continental ContiTech: FD 76-14 DI CR G1/2
  • Continental ContiTech: FD 76-14 DI CR /FD76-14DICR /FD7614DICR
  • Continental ContiTech Bellow: FD 76-14/FD76-14/FD7614
  • Firestone No.: W01-R58-4070/W01 R58 4070/W01R584070
  • Firestone Style: 6"x2
  • Dunlop FR: 6"x2 SP1646 (COMPOSITE)
  • Dunlop FR: 6"x2 SP2917 (ALUMINIUM)
  • Dunlop UK (Pneuride): A 3 1330 02 01/A313300201
  • Norgren: PM/31062/ PM 31062/PM31062
  • Nominal 0 (inch) x convolutions: 6" x 2/6"x2/6x2
Technical Specifications
Cover plate diameter: 152.5 mm
Threaded holes: M8
Center-to-center distance between threaded holes: 127 mm
Maximum outer diameter: 178 mm
Maximum height: 195 mm
Minimum height: 80 mm
Pressure vs Height Performance Data
Height H (mm) 3 bar 4 bar 5 bar 6 bar 7 bar 8 bar VoI.V(cm³)
75 566 764 942 1139 1318 1507 317
105 493 665 807 967 1133 1282 780
130 406 548 665 800 936 1062 1098
155 314 419 517 616 727 824 1329
195 111 142 191 234 265 310 1549
Applications
  • Industrial machinery vibration isolation
  • Press machines and die cushion systems
  • Conveyor systems and automation equipment
  • Light truck and trailer suspension systems
  • Cab suspension systems
  • Industrial shock absorption platforms

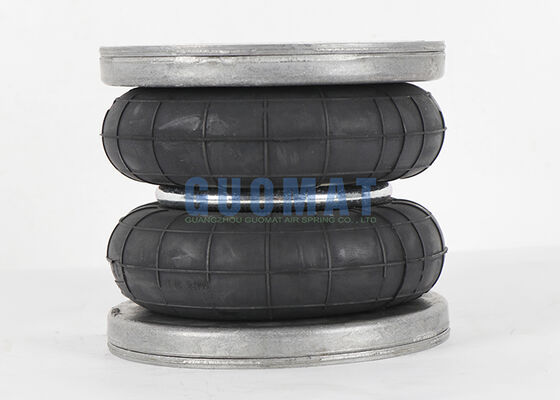

6x2 Firestone W01R584070 Rubber Air Spring - Industrial shock absorption component

タグ:

二重複雑な空気ばね,

三重の複雑な空気ばね,

産業空気ばね
