673 N Bus Suspension Air Bag WO1-095-0198 1R1A370-285 Firestone Air Bellow

商品の詳細:

起源の場所:	中国
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	673N

お支払配送条件:

最小注文数量:	6個
価格:	US$19.9-29.9/PC
パッケージの詳細:	強力なカートンボックスまたは顧客の必要に応じて
受渡し時間:	3～7営業日
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力:	1000個/週

詳細製品概要

項目名:	サスペンション空気ばね	色:	黒
タイプ:	ローリングローブ・エア・スプリング	パッケージ:	強いカートン
製品名:	サスペンション空気ばね	他の名前:	エアサスペンションバッグ
状態:	真新しい	ばね材:	天然ゴム
ハイライト:	Firestone bus air spring , 673N suspension air bag , WO1-095-0198 air bellow

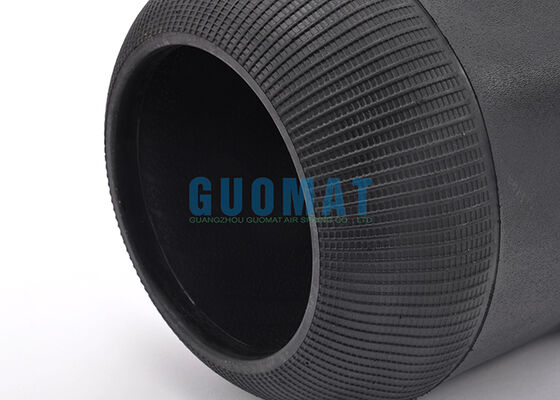

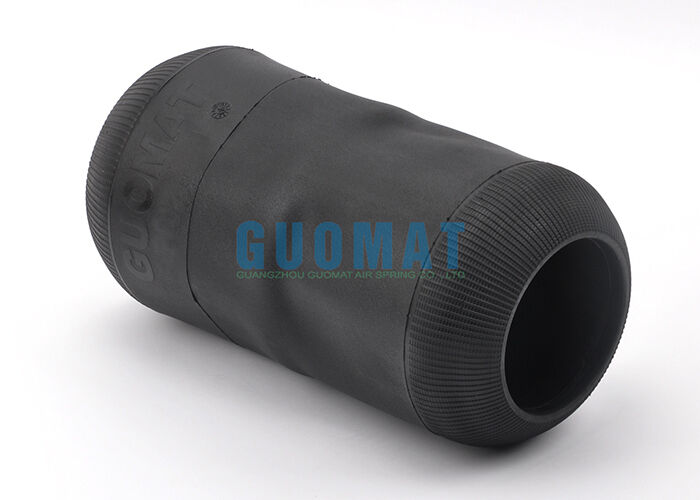

673 N Bus Suspension Air Bag WO1-095-0198 1R1A370-285 Firestone Air Bellow

GUOMAT 673N Bus Suspension Air Spring is a high-quality rubber air bellow designed for commercial vehicle air suspension systems. It serves as a direct replacement for Contitech 673N and Firestone W01-095-0198 / 1R1A370-285 models, providing reliable vibration absorption, load support, and improved driving comfort for buses and heavy-duty vehicles.

Product Specifications

Item	Details
Product Name	Bus Suspension Air Spring
GUOMAT No.	673N
Type	Rubber Air Bellow / Air Bag
Material	High Quality Rubber + Reinforced Fabric
Application	Bus Air Suspension System
Natural Height	370 mm
Outer Diameter	240 mm
Top Diameter	130.8 mm
Bottom Diameter	130.8 mm
Warranty	12 Months

OEM Cross-Reference Numbers

Contitech Numbers

673N, 673 N

Firestone Numbers

W01-095-0198, W01 095 0198, W010950198, 1R1A370-285

Other OEM Numbers

Goodyear: 9051
Phoenix: 1F21A
CF GOMMA: 1S 285-22, 88786

Manufacturer	Part Number
BERTOJA	02.2002.44.00
DAF	0 627584
EVO-BUS	A383 327 00 01
DATMLER CHRYSLER	A383 327 00 01

Features & Benefits

Excellent Vibration Absorption: The rubber air chamber uses compressed air as the elastic medium to absorb road shocks and reduce vibration transferred to the vehicle body.
Stable Load Support: Maintains consistent suspension performance under different passenger loads, helping buses achieve better ride stability.
Durable Rubber Construction: High-strength rubber material provides good resistance against wear, fatigue, ozone, and changing weather conditions.
Direct Replacement Fitment: Designed according to OEM specifications, GUOMAT 673N can replace original air spring models without changing the suspension structure.
Improved Passenger Comfort: By reducing harsh impacts and suspension noise, the air spring helps provide a smoother and more comfortable riding experience.

Packaging & Delivery

Packaging: Strong export carton or customized packaging according to customer requirements

Lead Time: 3-7 working days for standard stock items

Shipping: Express / Air / Sea transportation available

Warranty: 12 months
