720N Contitech Rubber Bellows Air Bag W01-095-0195 1R2A460-295 Firetone Bus Spare Parts

商品の詳細:

起源の場所:	中国
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	720N

お支払配送条件:

最小注文数量:	6個
価格:	US$19.9-29.9/PC
パッケージの詳細:	強力なカートンボックスまたは顧客の必要に応じて
受渡し時間:	3～7営業日
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力:	1000個/週

詳細製品概要

項目名:	サスペンション空気ばね	温度範囲:	30℃～40℃
主な材質:	ゴム	関数:	衝撃を軽減
別名:	バスエアスプリング	コンチテック:	720N
色:	黒	タイプ:	ゴム製空気ばね
ハイライト:	Contitech rubber bus air spring , Firestone bus spare parts air bag , 720N air spring bellows W01-095-0195

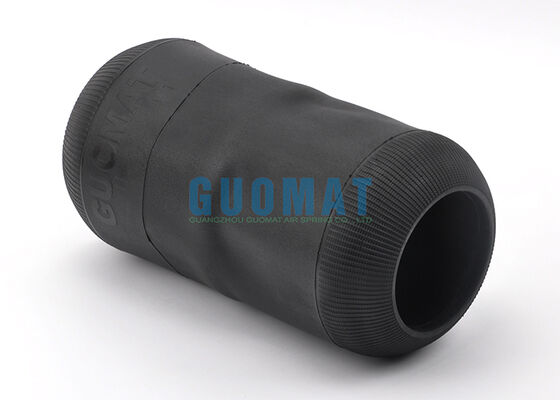

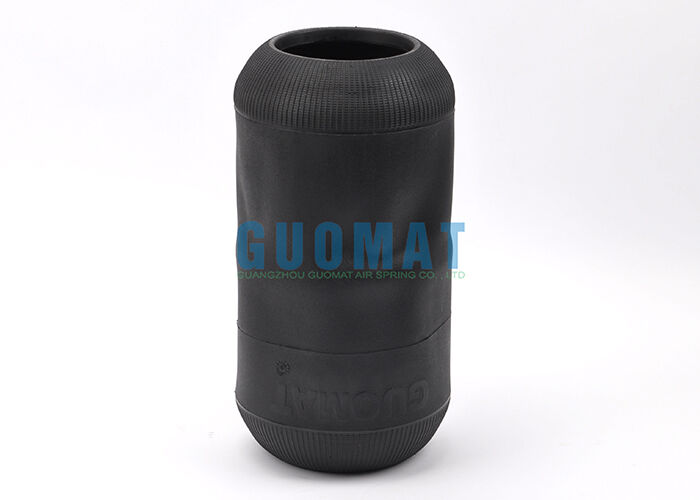

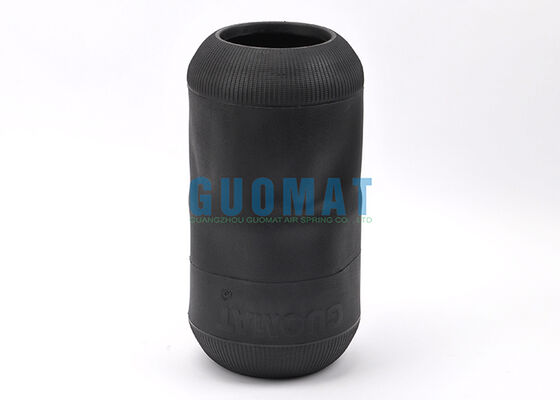

720N Contitech Rubber Bellows Air Bag W01-095-0195 1R2A460-295 Firetone Bus Spare Parts

GUOMAT 720N Bus Air Spring is a durable rubber bellows air suspension component designed for commercial vehicles, buses, and heavy-duty transportation applications.

Unlike traditional mechanical suspension components, pneumatic air springs use compressed air to provide flexible support and vibration absorption. The GUOMAT 720N air bellow helps maintain stable vehicle height under different load conditions while reducing shocks and road vibration transferred to the chassis.

Manufactured with reinforced rubber and high-strength end components, this bus air bag is built for long service life and reliable performance in demanding road environments. It is an ideal spare part for bus suspension maintenance, fleet repair, and commercial vehicle replacement projects.

Cross-Reference Part Numbers

Manufacturer	Part Number
Contitech	720N
Firestone	W01-095-0195
Firestone	1R2A460-295
Phoenix	1F21
Taurus	B152
Dunlop UK	PNP 301000100
Dunlop FR	D12S04
Goodyear	9008
CF Gomma	1SC290-30
CF Gomma	88802

Additional OEM Part Numbers

BPW: 02.2002.41.00
DAIMLER CHRYSLER: A3873280101
DENNIS: 650292/8
DENNIS: 650883/4
DENNIS: 650883/7
MAN: 81.43601.0033
MAN: 81.43601.0036
MAN: 81.43601.0037
METRO-CAMMELL: X 6641056
NEOPLAN: 100112300
V-OLVO: 1590136
V-OLVO: 1629193
V-OLVO: 6797169

Technical Specifications

Item	Specification
Product Name	Bus Suspension Air Spring
Weight	2.5KG
Design Height	460mm
Diameter	240mm
Opening Diameter	130.8mm
Load Capacity at 0.3bar	1.0KN
Load Capacity at 7.0bar	30.0KN
