1B8-550 Goodyear Industrial Isolation System W01-358-7564 Firestone Precision Air Spring

商品の詳細:

起源の場所:	中国
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	1B8X4

お支払配送条件:

最小注文数量:	6個
価格:	US$49.9-59.9/PC
パッケージの詳細:	強力なカートンボックスまたは顧客の必要に応じて
受渡し時間:	3～7営業日
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力:	1000個/週

詳細製品概要

項目名:	工業用空気ばね	状態:	真新しい
ボックスの寸法:	16168cm	天板径:	135mm
風穴:	1/4NPTF	位置:	工業機械
重さ:	2kg	グッドイヤー:	1B8-550
ハイライト:	Goodyear industrial air spring , Firestone precision air spring , industrial isolation system air spring

1B8-550 Goodyear Industrial Isolation System W01-358-7564 Firestone Precision Air Spring

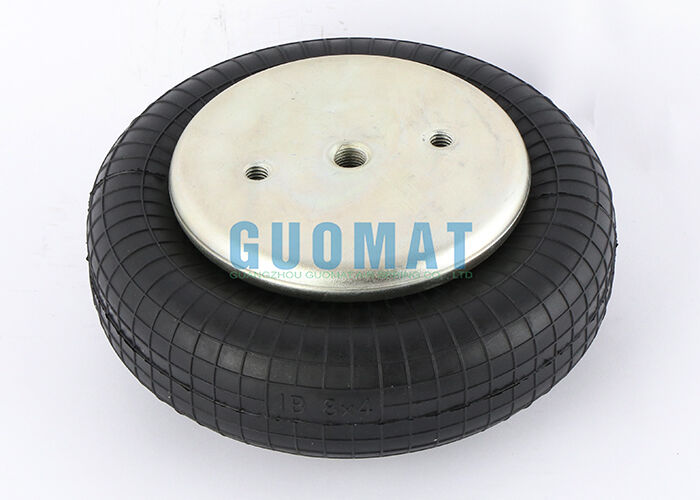

The GUOMAT 1B8X4 industrial vibration-isolating air spring is a single-convoluted industrial air actuator designed for shock absorption, vibration isolation, and precision control applications in industrial equipment. Featuring a composite structure of a high-strength rubber bellows and steel end caps, it utilizes compressed air to provide elastic support, effectively reducing vibration, shock, and noise generated during mechanical operation and enhancing equipment stability.

Product Specifications

Brand: GUOMAT

Model Name: Industrial Air Spring

Model No.: 1B8X4

Material: Rubber and Steel

Warranty: 1 Year

Corresponding OEM Numbers

Firestone Numbers:

W01-358-7600 / WO1-358-7600
W01 358 7600 / WO1 358 7600
W013587600 / WO13587600
W01-358-7564 / WO1-358-7564
W01 358 7564 / WO1 358 7564
W013587564 / WO13587564

Goodyear Numbers:

1B8-550
1B 8-550
1B8 550

Contitech Numbers:

FS120-10
FS 120-10
FS 120-10 CI 1/4 NPT

Technical Data

Dimensions

Cover plate diameter: 135mm

Threaded hole: 3/8-16UNC

Air port: 1/4NPTF

Center-to-center distance: 70mm

Maximum outer diameter: 230mm

Performance Data

Pressure P (bar)	3	4	5	6	7	8	Vol.V(I)
Force(Load) (kN)	4.8	6.6	8.2	9.9	11.6	13.3	2
Spring rate (N/mm)	132	170	209	242	277	316
Natural frequency (Hz)	2.7	2.7	2.6	2.6	2.5	2.5

Height vs Pressure Data

Height H (mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol.V(I)
120	4.2	5.6	7.2	8.4	10.2	11.7	2.1
110	4.8	6.6	8.2	9.9	11.6	13.4	2
100	5.6	7.4	9.2	11.2	13.1	15	1.8
90	6	8	10.1	12.2	14.2	16.4	1.6
80	6.5	8.6	10.9	13.2	15.3	17.6	1.4
70	6.8	9.2	11.4	13.8	16.1	18.4	1.3
60	7.1	9.4	12	14.4	16.6	19.2	1.1
