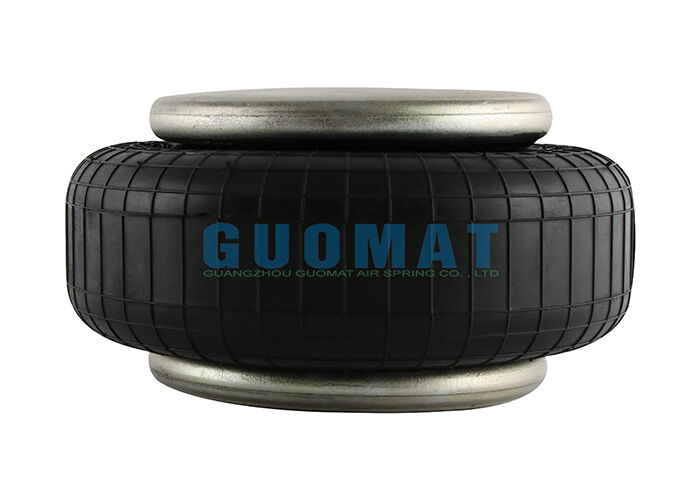

W01-358-7598 Firestone Shock Absorbing Air Spring 1B8-580 Goodyear Rubber Air Bags

商品の詳細:

起源の場所:	中国
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	1B8X6

お支払配送条件:

最小注文数量:	6個
価格:	US$49.9-59.9/PC
パッケージの詳細:	強力なカートンボックスまたは顧客の必要に応じて
受渡し時間:	3～7営業日
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力:	1000個/週

詳細製品概要

項目名:	工業用空気ばね	品質:	100%テスト済み
取り付けタイプ:	直接交換	プレートの直径:	135mm
パッキング:	ニュートラルパッキン	パッケージ:	中立ブラウンのカートンの包装
色:	黒	タイプ:	単一の巻き込み式空気スプリング袋
ハイライト:	Firestone shock absorbing air spring , Goodyear rubber air bags , Industrial air spring with warranty

W01-358-7598 Firestone Shock Absorbing Air Spring 1B8-580 Goodyear Rubber Air Bags

The GUOMAT 1B8X6 industrial air spring is a single-convoluted model designed for shock absorption, vibration isolation, and impact mitigation in industrial equipment. Featuring a construction that combines a high-strength rubber bellows with steel end caps, it utilizes compressed air to provide flexible, resilient support; this effectively reduces vibration, shock, and noise during operation, thereby enhancing the stability of the machinery.

Product Specifications

Type	Rubber Air Spring
Brand	GUOMAT
Model No.	1B8X6

Cross-Reference Part Numbers

Firestone Style: 116-1
Firestone Numbers: W01-358-7598 / WO1-358-7598 / W01 358 7598 / WO1 358 7598 / W013587598 / WO13587598
Goodyear Numbers: 1B8-580 / 1B 8-580

Technical Specifications

Cover plate diameter	135mm
Air hole	1/4-18NPF
Threaded hole	3/8-16UNC
Center-to-center distance between threaded holes	70mm
Outer diameter	190mm
Height	157mm

Performance Data

Assembly Height (in.)	Volume@100PSIG (in³)	Pounds Force
		@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
6.0	237	360	750	1150	1580	2090
5.0	210	540	1100	1650	2240	2920
4.0	178	650	1330	2000	2710	3490
3.0	139	710	1450	2200	2980	3810

Industrial Shock Absorption Applications

During industrial production, machinery operating at high speeds, undergoing frequent start-stop cycles, or subjected to fluctuating loads generates significant shock forces and vibrations. These impacts can compromise operational stability, accelerate wear on precision components, shorten equipment lifespan, and increase noise levels in the workplace.

The GUOMAT 1B8X6 industrial air spring utilizes a high-strength rubber bellows and a compressed-air elastic support structure. It effectively absorbs shock energy generated during equipment operation and minimizes the transmission of vibration to the foundation. By adjusting the internal air pressure, the support stiffness can be fine-tuned to match specific equipment weights and operating conditions, ensuring precise shock absorption and cushioning performance.

Ideal Applications

Shock-cushioning systems for automated production equipment
Vibration absorption units for stamping and forging machinery
Vibration isolation systems for industrial test platforms and laboratory equipment
Vibration damping for rotating machinery (compressors, motors, pump sets, etc.)
Vibration control for precision machining equipment

Compared to traditional metal springs, the GUOMAT 1B8X6 air spring offers a lower natural frequency, superior vibration isolation, and adjustable load-bearing capacity. It helps maintain smooth equipment operation, reduces wear caused by mechanical shock, and enhances both production efficiency and equipment reliability.
