2B9-200/2B9-202/2B9-216 Goodyear Double Convoluted Air Spring 578423202 Air Bellows Replacement

商品の詳細:

起源の場所:	中国
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	2B6910

お支払配送条件:

最小注文数量:	6個
価格:	US$59.9-69.9/PC
パッケージの詳細:	強力なカートンボックスまたは顧客の必要に応じて
受渡し時間:	3～7営業日
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力:	1000個/週

詳細製品概要

項目名:	工業用空気ばね	ベローズ構造:	二重複雑なタイプ
脳卒中:	225mm	他の名前:	空気ばねの振動
関数:	振動を減らします	手術:	ガス充填
アイテム:	産業エアーバッグ	打撃:	75mm～260mm
ハイライト:	Goodyear double convoluted air spring , Industrial air spring replacement , 578423202 air bellows

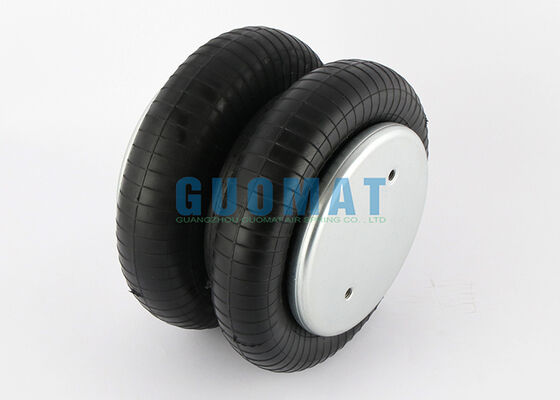

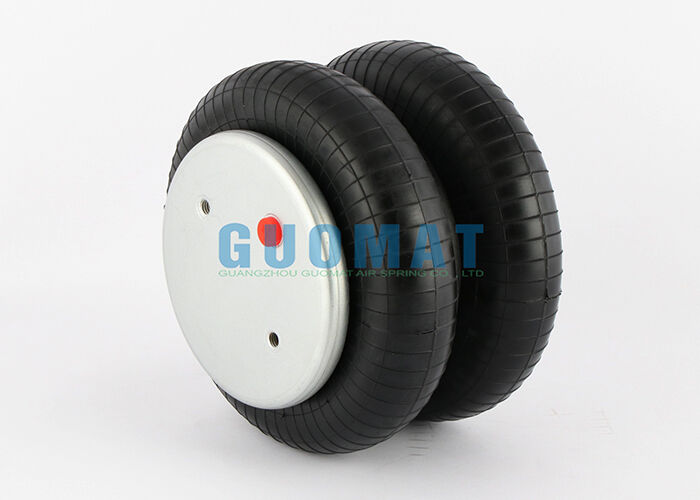

Goodyear Double Convoluted Air Spring 578423202

The GUOMAT 2B6910 is a high-performance double-convoluted industrial air spring designed for shock absorption, vibration isolation, load support, and air suspension systems in industrial equipment.

Featuring a dual-layer rubber bellows structure, it utilizes compressed air to provide flexible, resilient support. This design effectively absorbs shocks and vibrations generated during equipment operation while maintaining stable load-bearing capacity.

Product Specifications

Type:

Double Convoluted Type Air Bags

GUOMAT:

2B6910

Warranty:

1 Year

Material:

Rubber, Steel

Description:

Rubber Air Spring

Size:

OEM Standard

Packaging:

Regular Packing or As Per Customer Requirements

Alternative Part Numbers

Manufacturer	Part Number
Firestone	W01-358-6910
Contitech	FD 200-19 320
Goodyear	2B9-200
Goodyear	2B9-202
Goodyear	2B9-216
Goodyear	578423202
Goodyear	578 42 3 202
Goodyear	578-42-3-202
Triange	6325
Triange	4320
Taurus	KF218-6910

Additional Cross-References: Brake&Wheel: M3501, Dina: A812719, Dina: AZ812719, Dayton: 3546910, Leland: Sc2011, Navistar: 554783C1, Hendrickson: S8768, Hendrickson: 458433, Ridewell: 1003586910C, SAF Holland: 57006910, Trailers De: 133128, Tuthill: 1371, Watson&Chalin: AS-0001, Watson&Chalin: AS-0156G

Product Structural Advantages

Double-convoluted rubber air bellows: The dual-convolution design increases air volume, resulting in smoother elasticity characteristics that adapt to varying load conditions.
Steel top and bottom end caps: High-strength steel end caps enhance installation reliability and ensure long-term load-bearing stability.
Adjustable air pressure: Adjusting the internal air pressure allows for modification of the air spring's stiffness and load-bearing capacity, ensuring optimal equipment performance.
