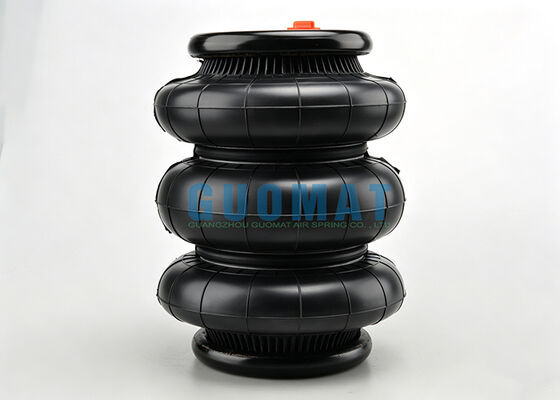

257mm Height Triple Convoluted Rubber Bellows 1/2NPT Industrial Air Spring With 3/8-16UNC

商品の詳細:

起源の場所:	中国
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	3B10X3

お支払配送条件:

最小注文数量:	6個
価格:	US$79.9-99.9/PC
パッケージの詳細:	強力なカートンボックスまたは顧客の必要に応じて
受渡し時間:	3～7営業日
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力:	1000個/週

詳細製品概要

項目名:	工業用空気ばね	保証期間:	12ヶ月
範囲を使用します:	工業機械	使用温度:	-40℃+70℃
製品保証:	1年	畳み込み:	3
ハイライト:	257mm rubber bellows air spring , 1/2NPT industrial air spring , 3/8-16UNC triple convoluted bellows

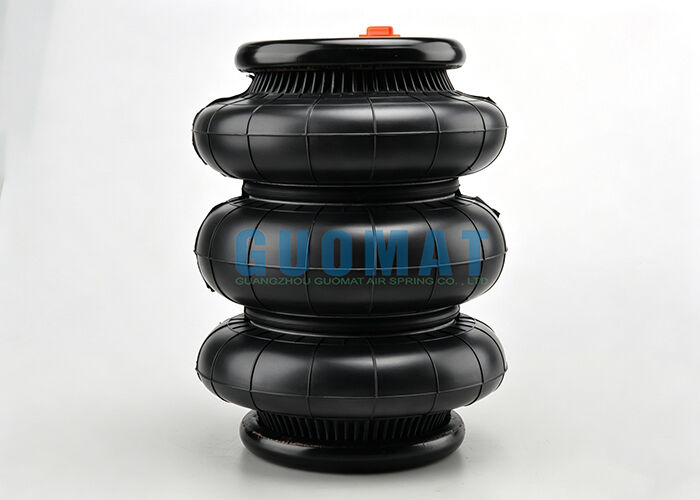

257mm Height Triple Convoluted Rubber Bellows 1/2NPT Industrial Air Spring With 3/8-16UNC

The GUOMAT 3B10X7 is a high-performance, triple-convoluted rubber air spring engineered for shock absorption, vibration isolation, and load-bearing applications in industrial equipment.

Product Specifications

GUOMAT NO.: 3B10X7

Product Overview

This model features a multi-layer reinforced rubber bellows structure combined with steel top and bottom end caps, utilizing compressed air to provide flexible, resilient support. Compared to traditional mechanical springs, air springs offer a lower natural frequency and superior vibration isolation, effectively reducing vibration, shock, and noise generated during equipment operation.

Key Features

Triple-Convoluted Bellows Structure: Higher load-bearing capacity with stable elastic support, adapts to significant dynamic load fluctuations, improves operational stability, and enhances shock absorption capabilities. Ideal for industrial applications requiring high load capacity and reliability.
High-Efficiency Vibration Isolation: Reduces operating noise, minimizes vibration transmission, improves machining precision, and extends equipment service life. Perfect as a key component in industrial vibration isolation systems.
Premium Rubber Bellows Design: Manufactured from high-strength rubber with integrated reinforcing fiber layers for enhanced durability. Features excellent fatigue resistance, superior sealing performance, and high wear resistance suitable for continuous reciprocating motion.
Standardized Interface Design: Easy installation with air connection: 1/2 NPT and mounting threads: 3/8-16 UNC. Compatible with various industrial equipment and air suspension systems, reducing maintenance and replacement costs.

Compatible Replacement Models

Contitech	Goodyear	Firestone	Phoenix
928N	8042	W01-095-0228	2E23A
943N	9001	W01-095-0189
973N	8012	W01-095-0198	1F21A
945N	9014	W01-095-0063	1E21C
975N		W01-095-0437	1E10
		W01-095-0294
		W01-358-9391
4913NP02	1R14-753	W01-095-0500	1D28H-16
	1R14-869
4159NP06		W01-M58-0736
810NTB	1R14-713	W01-M58-0749	1DK28A4
4022NP02	1R11-709	W01-M58-0756
4022NP02	1R11-709	W01-M58-0756
836MB		W01-M58-0775	1DF25-4
836MB	1R12-700	W01-M58-0776	1DF25-1
836M2K1	1R12-711	W01-M58-8721	1DF25-13
887M	1R11-796	W01-M58-0780
889MK2		W01-M58-0781
		W01-M58-0918
4004NP02		W01-M58-0919
4004NP02		W01-M58-0919
6603NP02
4183NP23
4883N1P07
6609NP01
