Truck Seat Suspension Air Spring 1S4-074 Goodyear Air Shock With Piston

商品の詳細:

起源の場所:	広東省、中国
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	G4074

お支払配送条件:

最小注文数量:	6個
価格:	$49.9/pc-$89.9/pc
パッケージの詳細:	強力なカートンボックスまたは顧客の必要に応じて
受渡し時間:	2～8営業日
支払条件:	T/T、ウェスタンユニオン、L/C、ペイパル、その他の交渉
供給の能力:	10000個/週

詳細製品概要

材質の種類:	ゴム製/鋼鉄	保証:	12ヶ月
パッケージ:	標準の梱包またはカスタマイズ	起源:	中国
商品の種類:	エアスプリング/エアバッグ/エアバロン	サスペンションシステム:	サスペンションシステム
失敗のテスト:	≥3何百万	ブランド:	グオマット G4074
ハイライト:	Truck seat air suspension spring , Goodyear air shock absorber , Cab shock absorber with piston

Truck Seat Suspension Air Spring 1S4-074 Goodyear Air Shock With Piston

Truck Seat Suspension Air Spring 1S4-074 Goodyear Air Shock With Piston

Product Specifications

Brand: GUOMAT

Product Name: Driver Cab Suspension

Model Name: G4074

Compatible Part Numbers

GOODYEAR Number: 1S4-074 / 1S 4-074 / 1S4 074 / 1S4074

GOODYEAR Piston Number: ASC-08-7-134 / ASC 08 7 134 / ASC087134

V-OLVO Number: 66003-3201 / 66003 3201 / 660033201

Technical Data: Truck Cab Air Spring

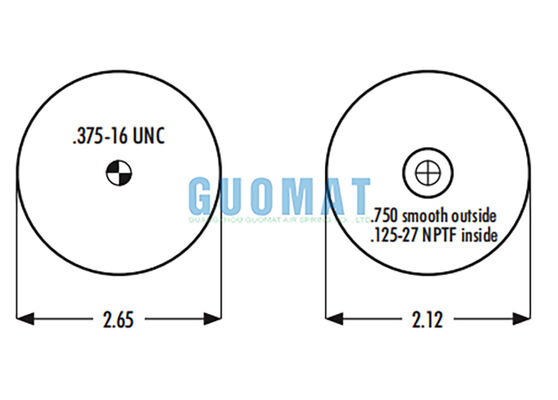

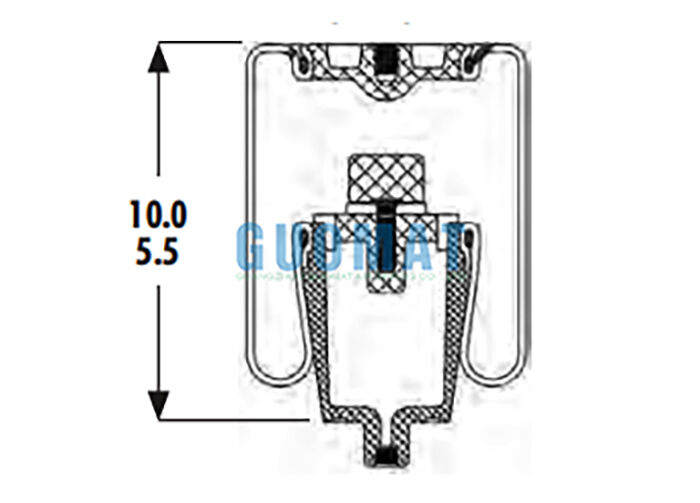

Specification	Measurement
Top cover diameter	72mm
Threaded hole	3/8-16UNC
Outer diameter	103mm
Air Hole	1/8NPTF
Base height	124.5mm
Design height	193mm
Maximum height	370mm
Minimum height	40mm

Applications

Truck Driver Seat Suspension Systems - Reduces road vibration and improves driving comfort during long-distance transportation
Heavy Duty Truck Cab Seats - Supports seat suspension to maintain stability and reduce driver fatigue
Commercial Vehicles - Suitable for buses, construction vehicles, and special transport trucks equipped with air suspension seats
Agricultural and Industrial Machinery Seats - Helps absorb shocks in tractors, harvesters, and other heavy equipment
Off-Road and Construction Equipment - Improves seating comfort in rough working environments

Key Features

Effective Vibration Absorption: The air spring design helps reduce vibration and shocks transmitted from the vehicle chassis to the driver seat
High Strength Rubber Bellows: Manufactured with durable reinforced rubber materials to ensure long service life and reliable performance
Piston Type Structure: The integrated piston design provides stable support and maintains consistent suspension performance
Improved Driver Comfort: By absorbing road impacts, the seat suspension system helps reduce driver fatigue during long hours of operation
Stable Seat Height Control: The air spring maintains proper seat positioning and contributes to better driving ergonomics
Easy Installation and Replacement: Designed for direct installation in compatible seat suspension systems, making replacement quick and convenient
