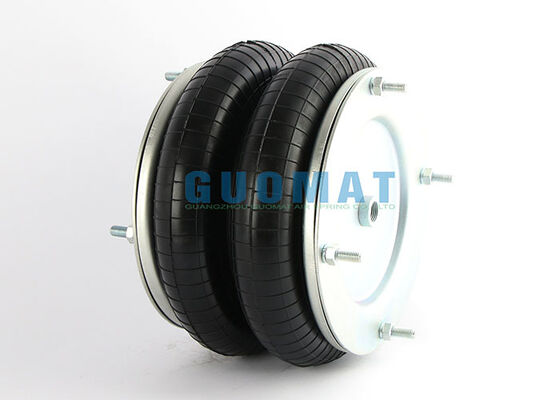

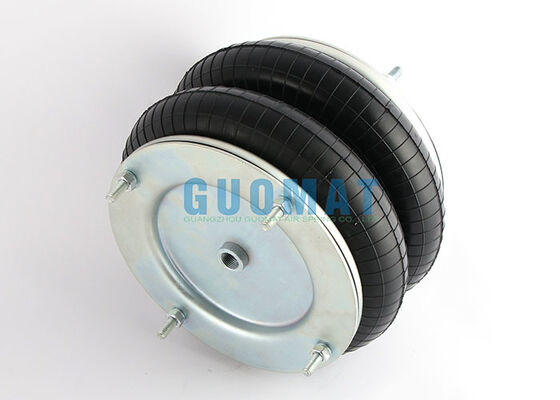

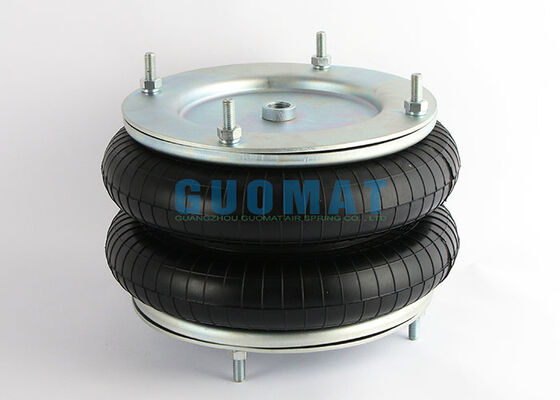

16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment

商品の詳細:

起源の場所:	広東省、中国
ブランド名:	GUOMAT
証明:	ISO/TS16949:2009
モデル番号:	2B16X2T

お支払配送条件:

最小注文数量:	6個
価格:	交渉可能
パッケージの詳細:	強力なカートンボックスまたは顧客の必要に応じて
受渡し時間:	2～8営業日
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力:	1000個/週

詳細製品概要

使用温度:	-40℃+70℃	モデル:	エアバッグ
相互参照:	コンチテック FD 816-30	保証特別:	1年
使用法:	産業用	回旋の数:	ダブル
うなり声数:	16x2	ファイアストーン:	W01R584067
ハイライト:	Firestone air spring double convoluted , 16 inch rubber air spring , air bellow for tooling equipment

16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring

Designed for tooling equipment, this double convoluted rubber air spring provides reliable performance and durability.

Product Overview

The GUOMAT 2B16X2T air spring is manufactured with high-quality materials and superior craftsmanship, serving as a complete replacement for the Firestone W01R584067.

This product uses high-toughness natural/synthetic composite rubber and imported cord reinforcement materials, adhering to ISO international quality standards. Fully compatible with the original Firestone W01R584067 in interface dimensions, working stroke, and rated load capacity, making it ideal for bus suspensions, commercial vehicle cab vibration damping, and industrial equipment vibration isolation.

Product Specifications

Product Name	Flange Air Spring
Brand	GUOMAT
Model No.	2B16x2T
Convolutions	2
Warranty	1 Year
Material	Rubber and Steel

Compatible OEM Numbers

Firestone Style: 16''X2, 16X2
Firestone Number: W01R584067, W01 R58 4067, W01-R58-4067
Dunlop Number: SP1557
Contitech Number: FD816-30DS, FD 816-30DS, FD 816-30 DS
Norgrem Number: M/31162, M 31162, M31162
Parker Number: 9109171

Technical Specifications

Air port inlet	G1/2
Rec/Max pressure	5,5/8 bar
Force(N)@0 bar to H(mm)	120(80)
Weight	9.70KG
Max. outer diameter	440mm
Min. height	75mm
Max. height	325mm
Recommended height	300mm
